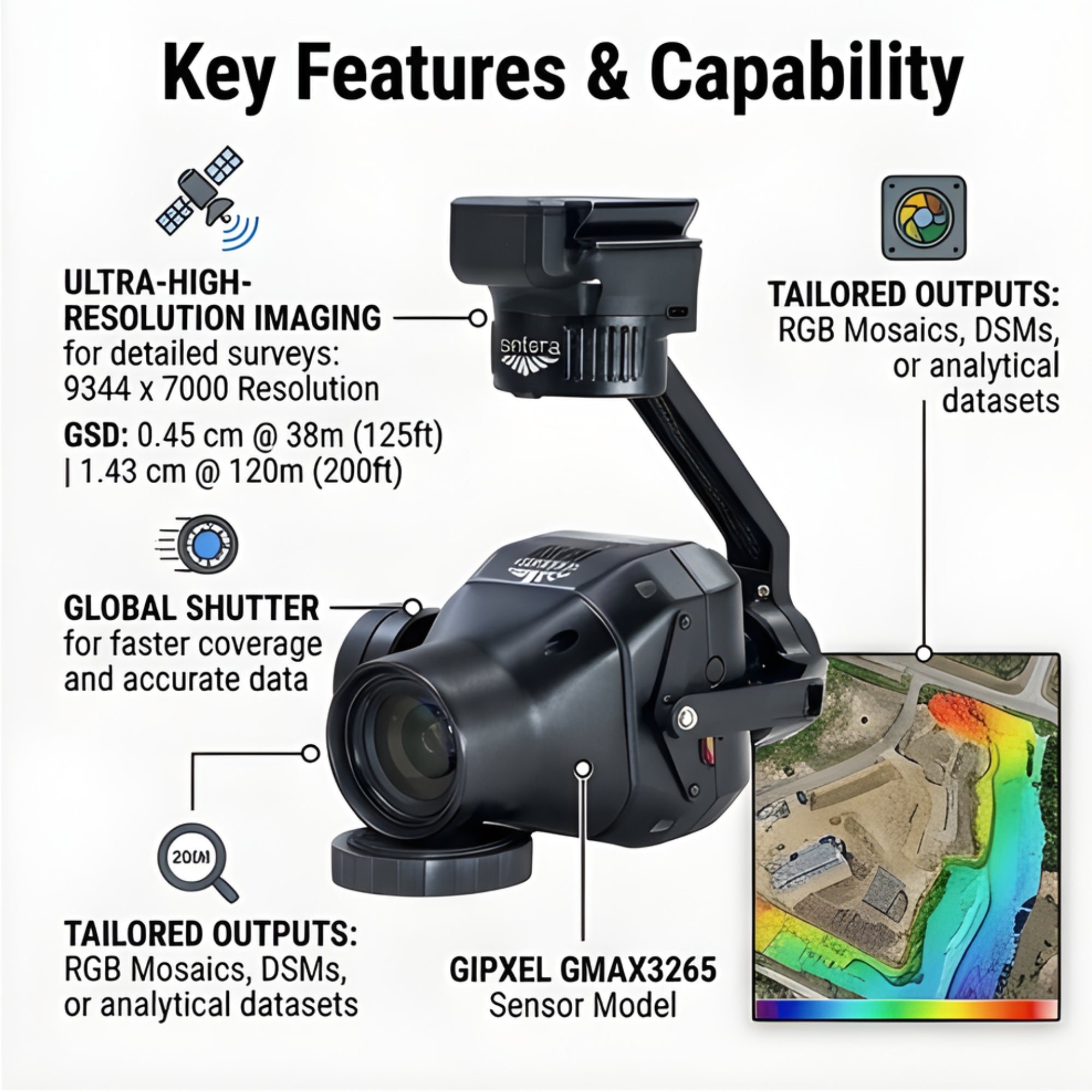

Inspired Flight Sentera 65R IF1200A Payload - Drone Mapping & Imaging Camera System

The Inspired Flight Sentera 65R - IF1200A Payload is the first ultra-high-resolution precision sensor specifically designed for seamless drone integration, including RTK systems. Compatible with IF800 & IF1200 drones, it is engineered to deliver ultra-clear aerial images that enhance survey, mapping, and modeling workflows. Capture more pixels per image with a ground sampling distance as low as 0.45 cm/pixel, allowing for faster coverage and more accurate data for critical decision-making.

Specifications

• Sensor Model: Gipxel GMAX3265
• Resolution: 9344 x 7000 pixels
• HFOV: 57.6° x 44.8°
• GSD: 0.45 cm @ 38 m (125 ft) | 1.43 cm @ 120 m (200 ft)
• Focal Length: 27 mm
• Shutter: Global
• Pixel Size: 3.2 µm
• Dimensions: 6.35 cm x 6.3 cm x 10.64 cm (2.50" x 2.48" x 4.19")
• Weight: 330 g (including lens)
• Power: 9–26 V input, 12 W typical
• Frame Rate: 3 fps
• Image Format: JPEG
• Storage: 512 GB Internal PCIe NVMe
• Interfaces: USB-C, Gigabit Ethernet, UART, Digital I/O
• Sync Inputs: Pulse/PWM for image capture, Pulse Per Second (PPS) for time/position
• Sync Outputs: Pulse for image exposure

Features

• Ultra-high-resolution imaging for detailed surveys
• Tailored outputs: RGB mosaics, DSMs, or analytical datasets
• Integrated IMU for precise positioning
• Pushbutton trigger option for manual image capture
• Designed for rapid drone integration and workflow efficiency

Maintenance

• Store in a dry, dust-free environment when not in use
• Regularly clean lens with a microfiber cloth to maintain image clarity
• Check connections (USB-C, Ethernet, and Digital I/O) before flight
• Avoid exposure to extreme temperatures or humidity
• Update firmware periodically via the manufacturer’s recommended method
