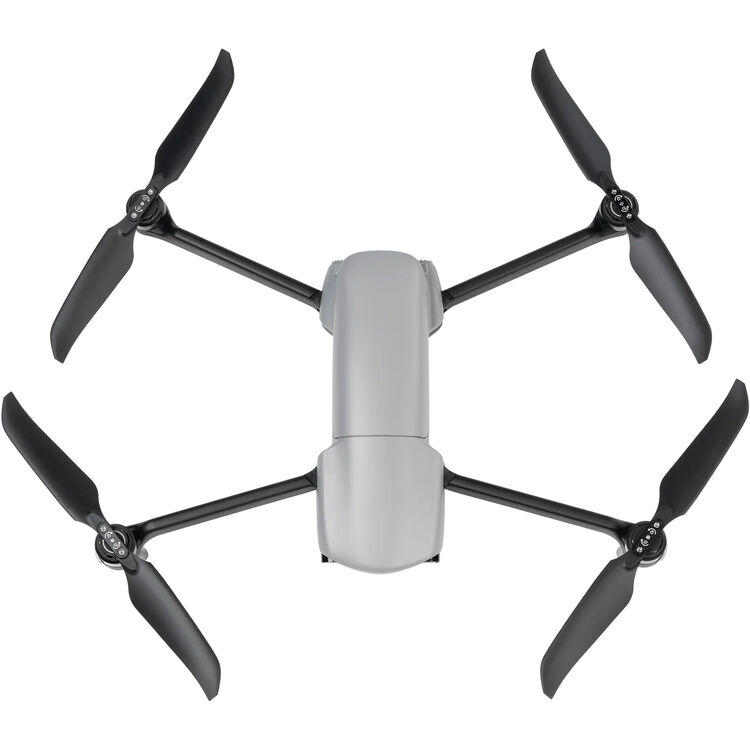

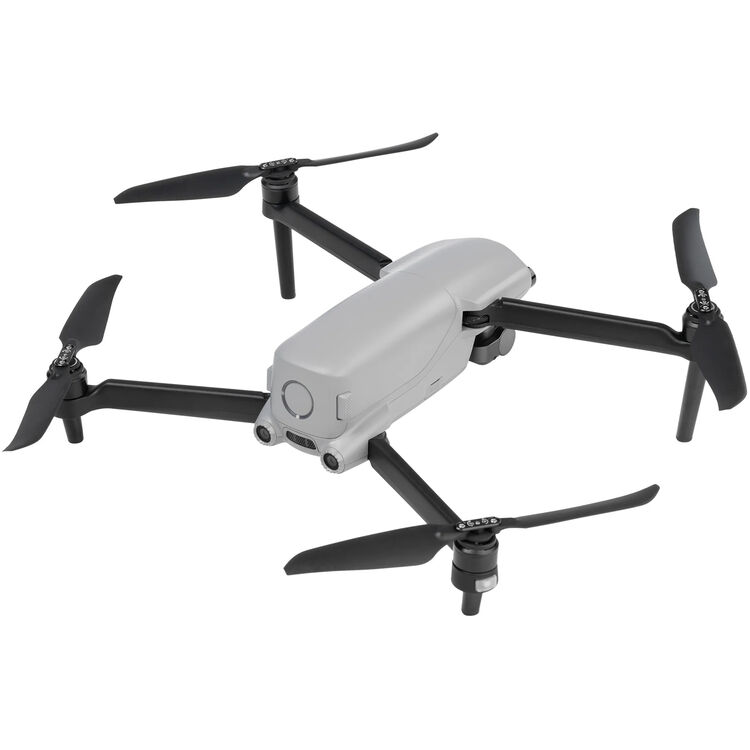

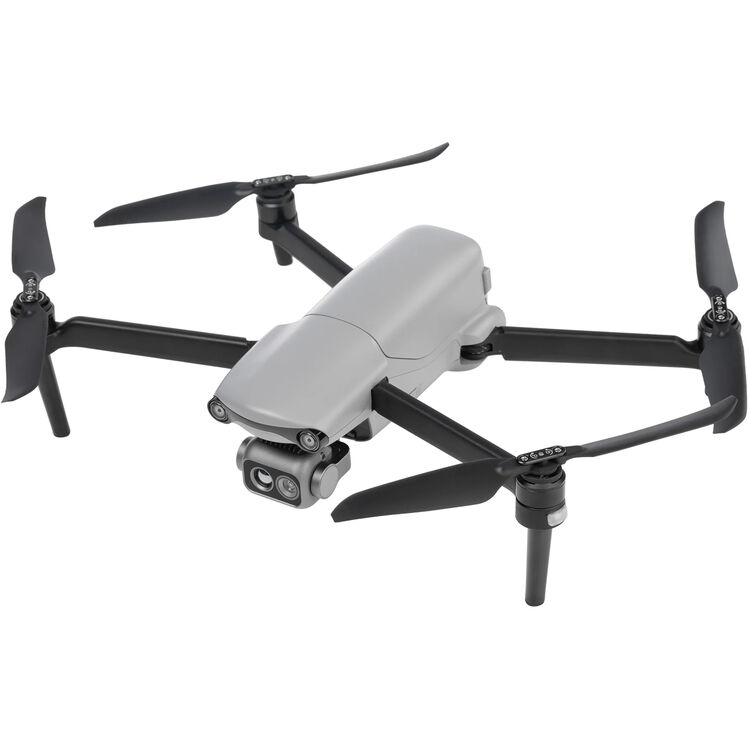

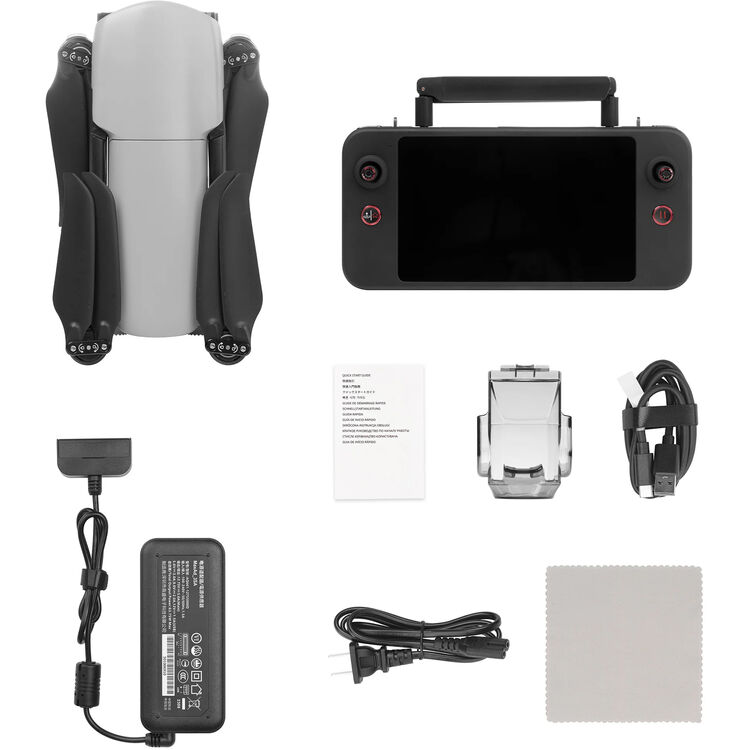

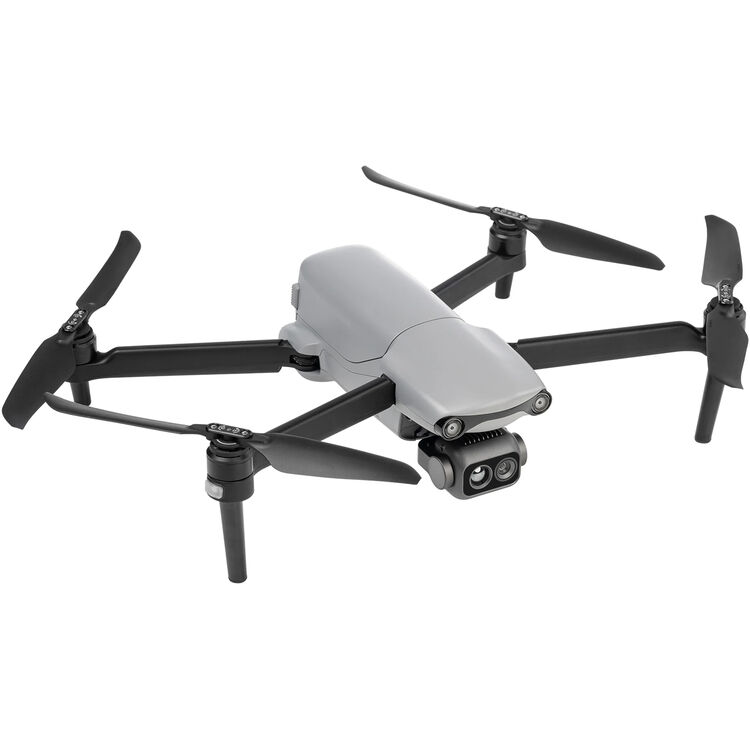

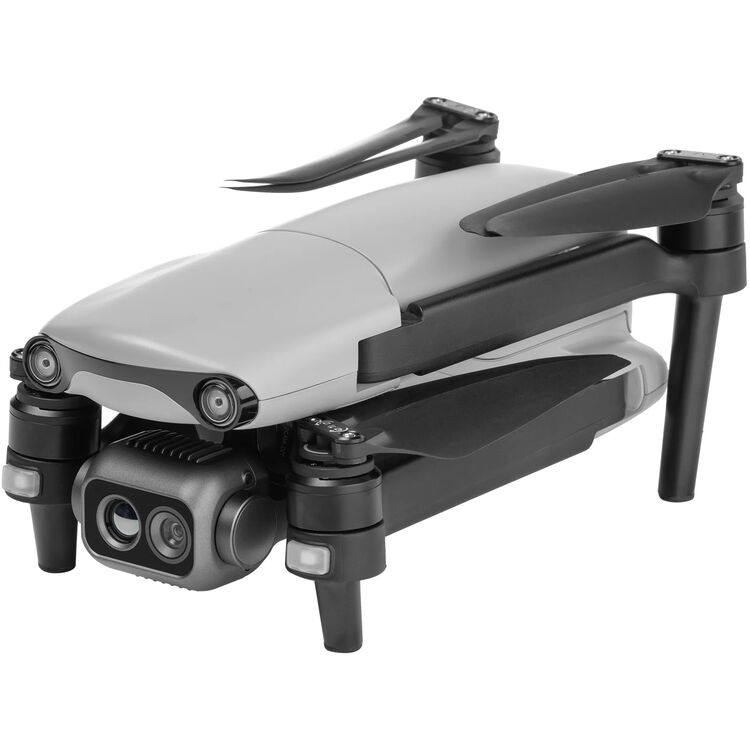

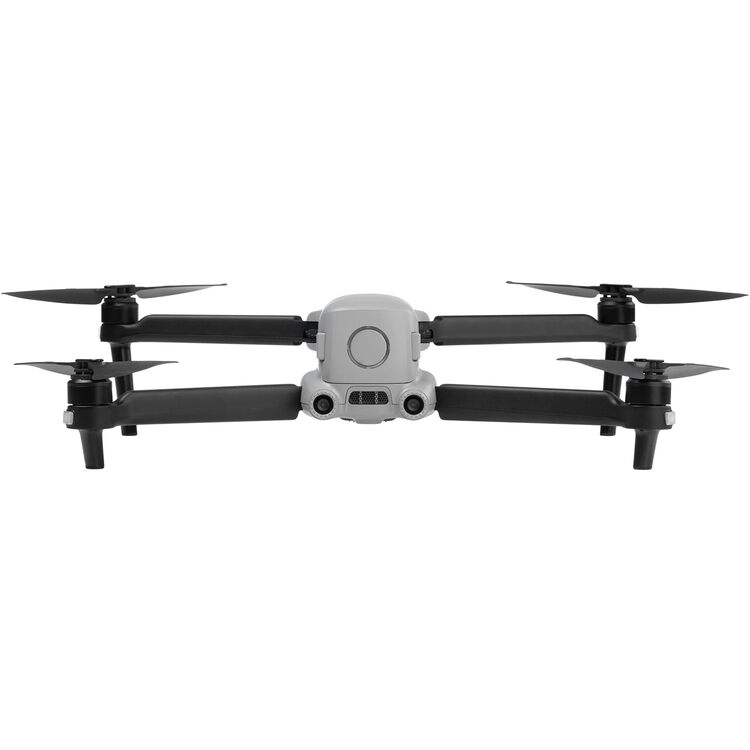

Autel Robotics EVO Lite 640T Enterprise Standard Package

The EVO Lite 640T Enterprise Edition by Autel Robotics is a lightweight, portable drone designed for professional operations in law enforcement, public safety, and emergency rescue. It features a dual-gimbal system with a high-resolution visible-light camera and an infrared thermal imaging camera, providing clear and detailed visuals for decision-making in complex scenarios. Coupled with the Autel Enterprise Flight App, the drone allows for single-operator deployment, flexible mission planning, AI target recognition, and robust data security. Its compact size and simple operation make it an ideal solution for rapid, efficient missions.

Specifications

Aircraft

• Weight: 866 g

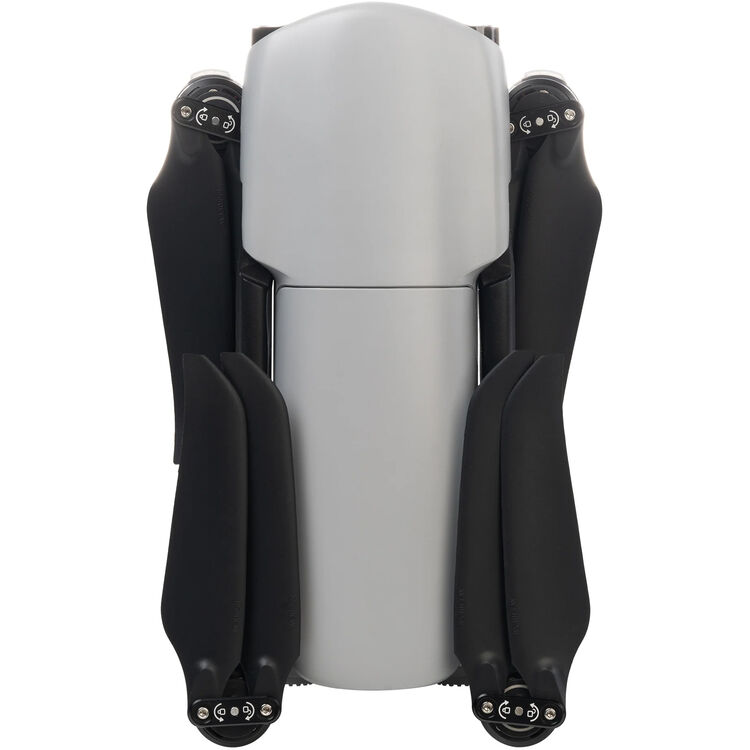

• Folded Dimensions: 210 x 123 x 95 mm
• Max Takeoff Altitude: 3000 m
• Max Horizontal Speed: 18 m/s
• Flight Time: 40 minutes

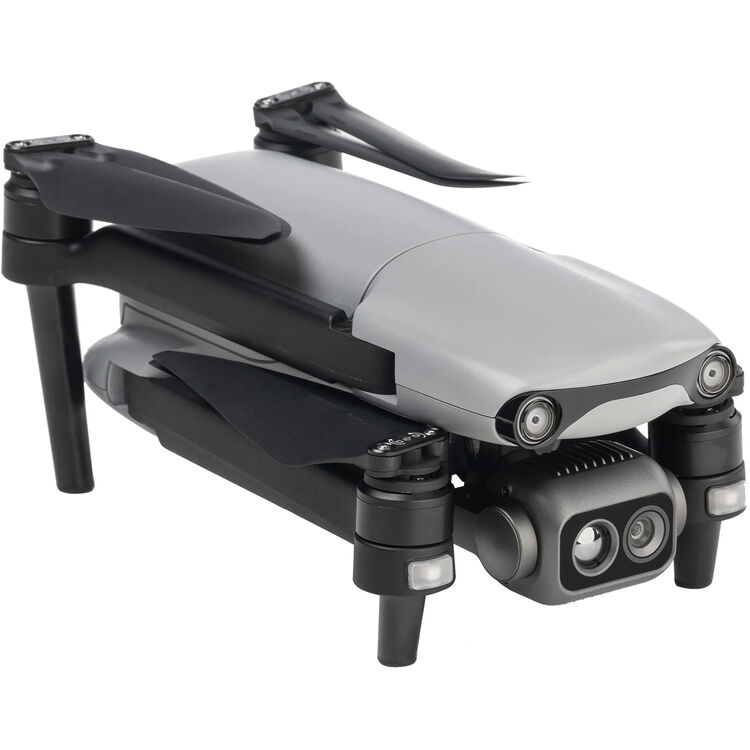

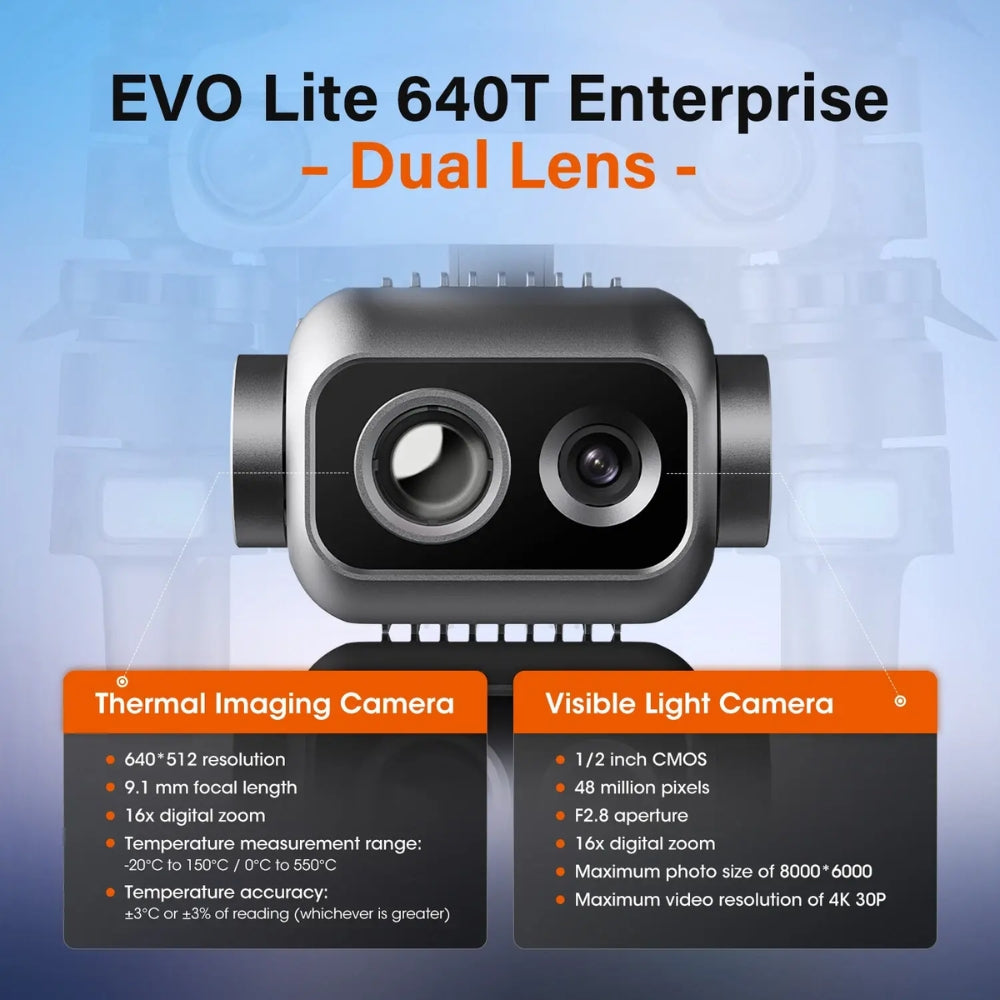

Dual Gimbal Cameras

Visible-Light Camera

• Sensor: 1/2-inch CMOS
• Resolution: 48 MP
• Aperture: F2.8
• Digital Zoom: 16x
• Maximum Photo Size: 8000 × 6000
• Maximum Video Resolution: 4K 30P

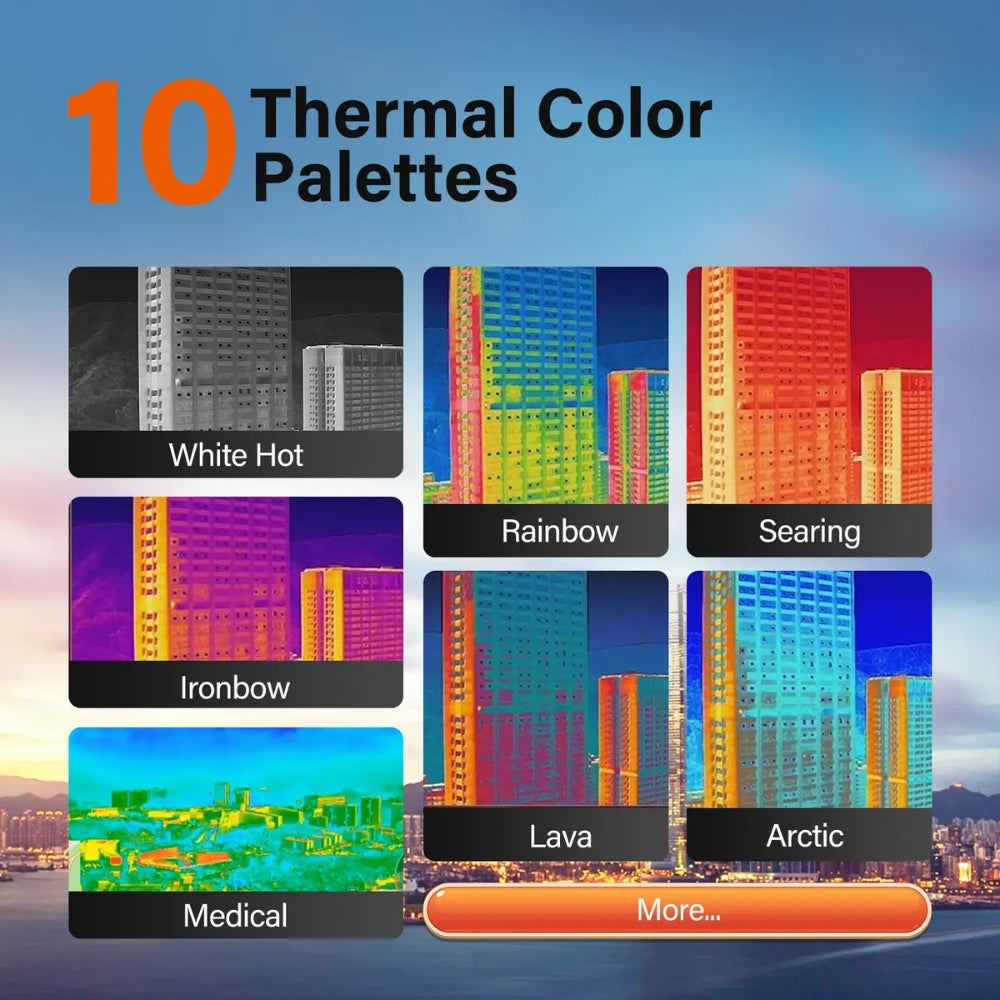

Thermal Imaging Camera

• Resolution: 640 × 512
• Focal Length: 9.1 mm
• Digital Zoom: 16x
• Temperature Range: -20°C to 150°C / 0°C to 550°C
• Accuracy: ±3°C or ±3% of reading

Transmission & Control

• Transmission Range: 12 km
• Signal: Dual-signal, dual-reception; 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping

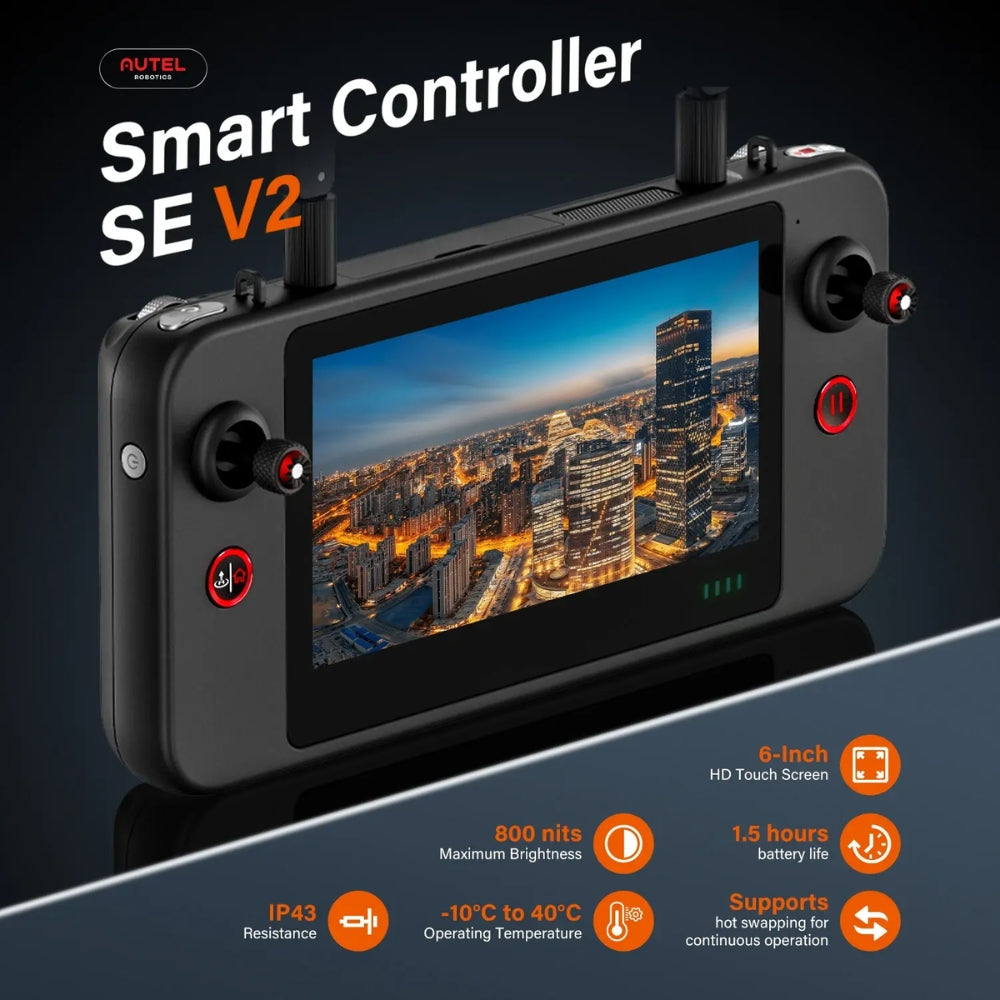

• Controller: Autel Smart Controller SE V2 (6-inch display, 1440 × 720 resolution, 1.5-hour battery life, hot swap support)

Sensors & Navigation

• Dual-binocular obstacle avoidance in three directions
• Wide-angle vision sensors at front, back, and bottom
• High-precision visual navigation

Features

• Lightweight & Portable – Only 866 g; folds to a compact size for backpack portability.
• Easy Operation – Intuitive controls suitable for single-operator missions.
• High-Precision Visual Navigation – Ensures precise positioning and flight safety.
• Dual-Binocular Obstacle Avoidance – Front, back, and bottom sensors for reliable obstacle detection.
• AI Target Recognition & Positioning – Identifies up to 64 objects (people, cars, boats) and displays positions on the map.
• 12 km Transmission Range – Equipped with Autel SkyLink for strong anti-interference capability.
• 40 Minutes of Flight Time – Long-endurance battery for extended missions.
• SDK Ecosystem (MSDK) – Open Mobile SDK for custom solution development.
• Environmental Adaptability – Operating temperatures from -10°C to 40°C.

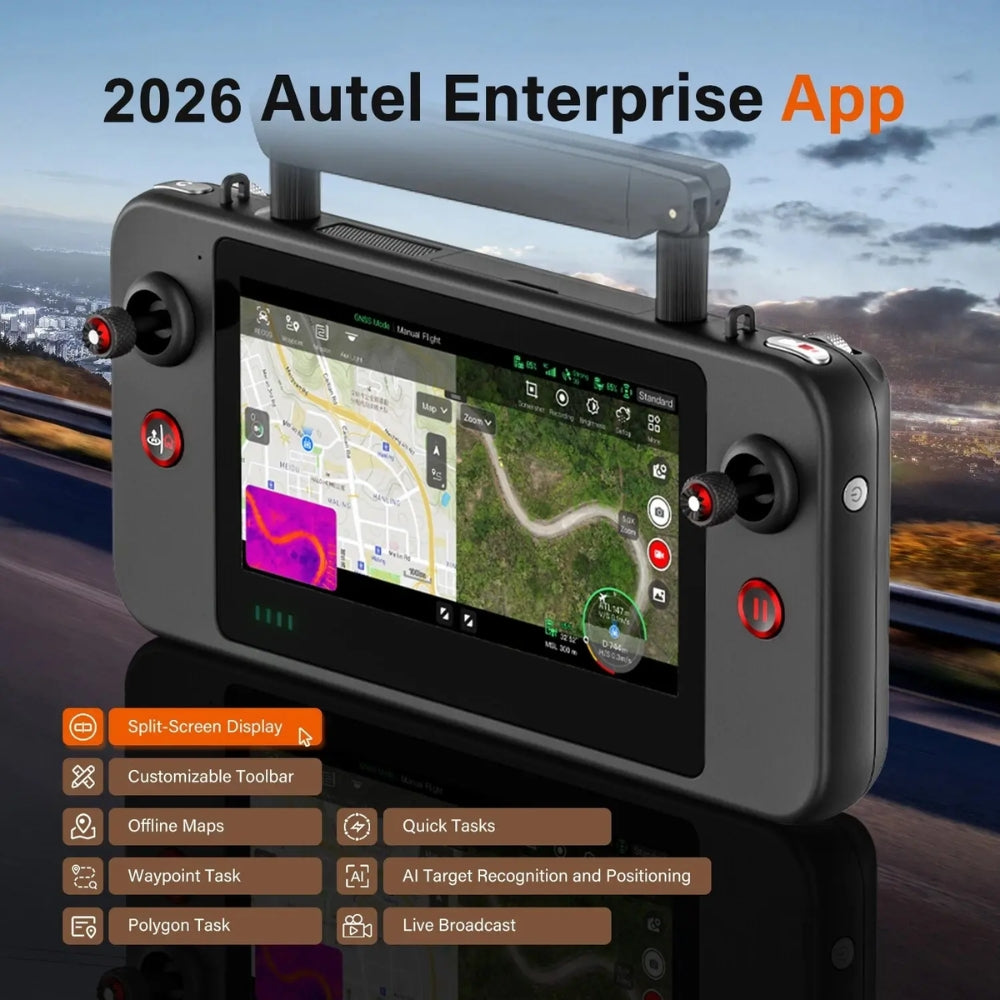

Autel Enterprise Flight App

• Split-screen display: visible light, infrared, or maps
• Customizable toolbar for quick access
• Offline maps support

Data Security

• Encrypted storage with AES
• Flight logs require consent to upload
• Supports RTMP/GB28181 live streaming

Maintenance

• Battery Care: Remove and charge separately; hot swap supported for continuous operation.
• Firmware & App Updates: Regularly update via the Autel Enterprise Flight App for optimal performance.
• Camera & Sensor Cleaning: Keep lenses and vision sensors free of dust, dirt, or moisture.
• Storage & Data Security: Ensure encrypted storage passwords are secure; manage flight logs and video storage regularly.
• Environmental Checks: Avoid extreme temperatures outside -10°C to 40°C.
• Pre-Flight Inspection: Check propellers, gimbals, and obstacle avoidance sensors for damage before each mission.

Warranty

Accidental Protection Options:

1. 1 Year Extended Warranty Protection
2. 2 Years Extended Warranty Protection

EVO Lite Enterprise Series – Frequently Asked Questions (FAQ)

Color Options:

• Available in Gray only.

Battery Compatibility:

• Batteries are interchangeable with the EVO Lite Series.

Battery Charging Time:

• Fully depleted battery takes ~90 minutes to charge.

Image Transmission Range:

• Open environment without interference:
• FCC standard: Up to 12 km (7.4 miles)

Compatible Remote Controllers:

• Autel Smart Remote SE V2 (6-inch screen)
• Autel Smart Remote V3 (7.9-inch screen)

Remote Controller Battery:

• SE V2: Battery is replaceable and hot-swappable
• V3: Battery is not replaceable

Memory Expansion (SE V2):

• 32GB internal storage
• Supports up to 128GB microSD card

SE V2 Multi-Charger:

• Charges up to 4 batteries simultaneously

Camera Options:

• 6K Camera
• 640T Thermal Camera

Camera Interchangeability:

• Between 6K and 640T: Yes
• Between Enterprise and standard Lite Series: No

Camera Vertical Shooting:

• Not supported

Software Supported:

• Autel Enterprise software

Industries Suitable For:

• Public safety
• Emergency rescue
• Industrial inspections
• Other professional applications

Third-Party Payloads:

• Not supported

MSDK Support:

• Full MSDK support available with Smart Remote V3

Firmware Upgrade Methods:

• Online Update (OTA): via Autel Enterprise app
• Offline Update: SD card with firmware inserted into remote controller
