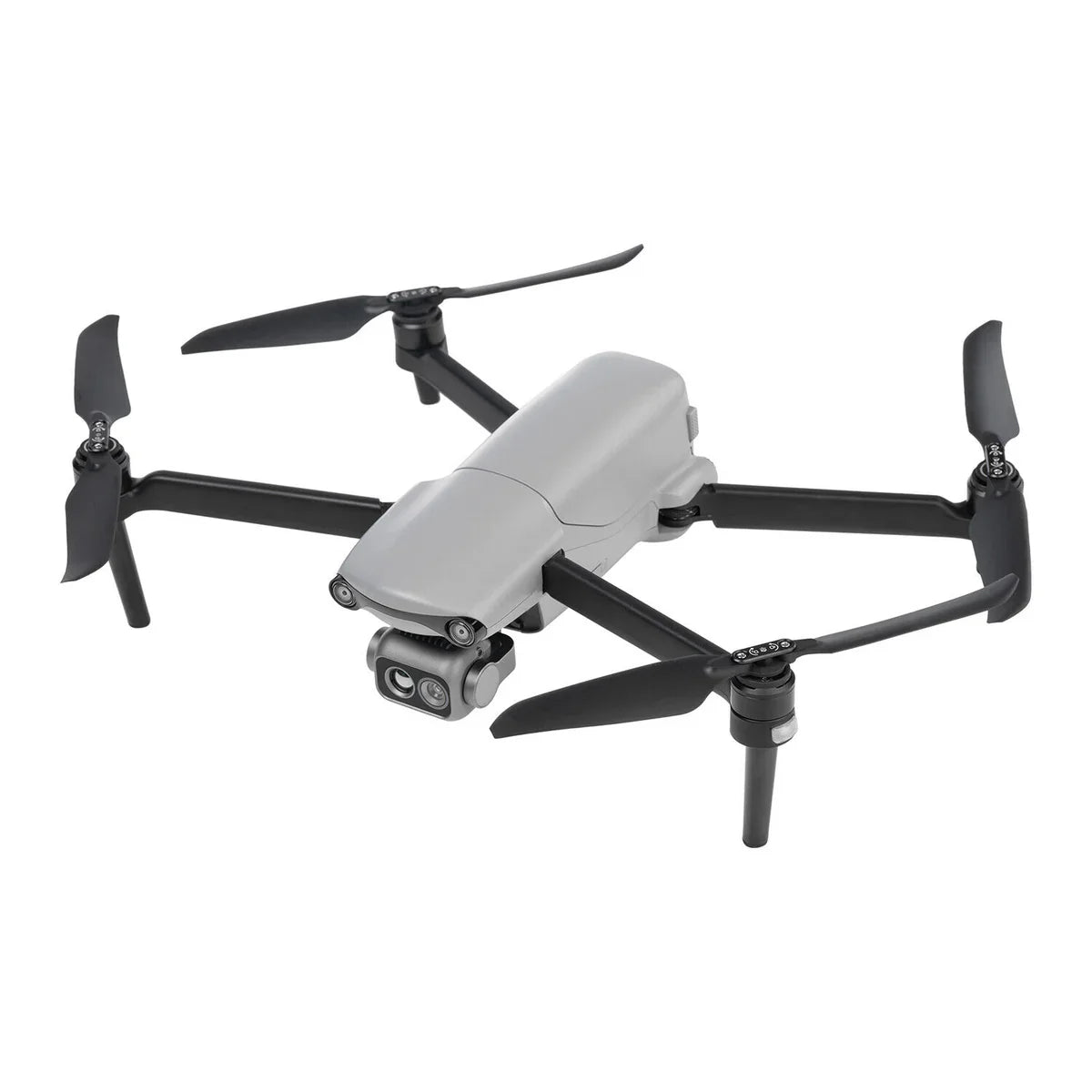

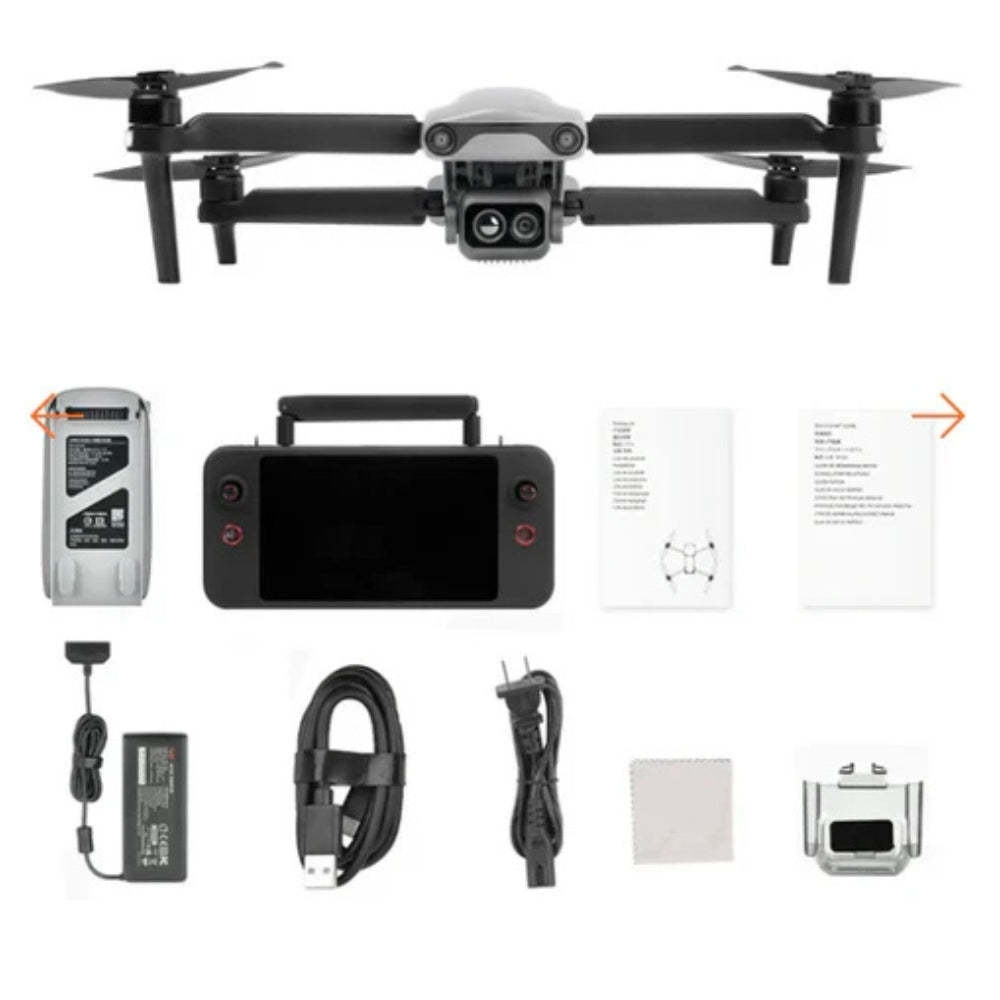

Autel Robotics EVO Lite 640T Enterprise Premium Package

The EVO Lite 640T Enterprise Edition is a lightweight, portable drone designed for professional applications in law enforcement, public safety, and emergency rescue. It features a dual gimbal system combining a visible light camera for high-definition imagery and a thermal imaging camera for critical decision-making in various operational environments. The aircraft is designed for single-person deployment and is paired with the Autel Enterprise Flight App, which provides intelligent mission planning, AI target recognition, split-screen monitoring, and offline map capabilities for flexible and efficient operation. Its compact size and straightforward operation make it an ideal solution for rapid-response scenarios where precision, reliability, and situational awareness are critical.

Specifications

Aircraft

• Weight: 866 g

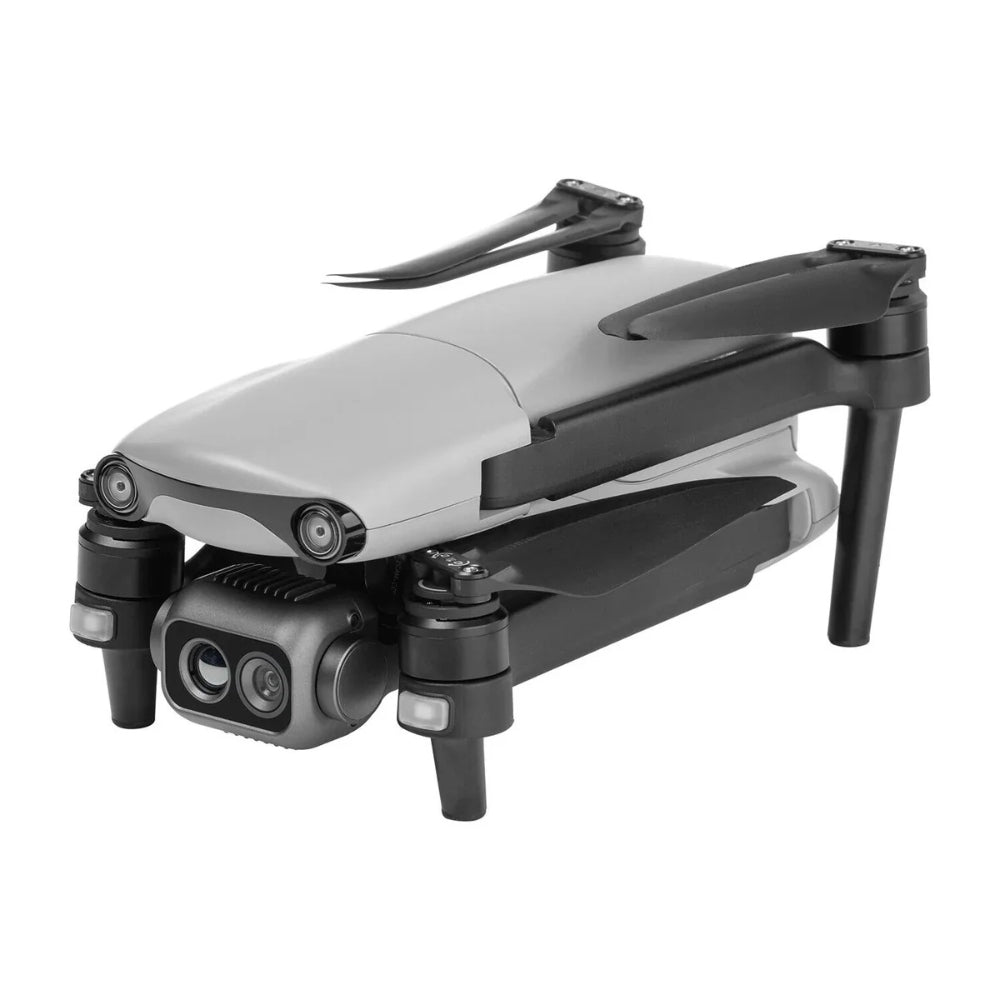

• Folded Dimensions: 210 × 123 × 95 mm
• Maximum Flight Time: 40 minutes
• Maximum Horizontal Speed: 18 m/s
• Maximum Takeoff Altitude: 3000 m

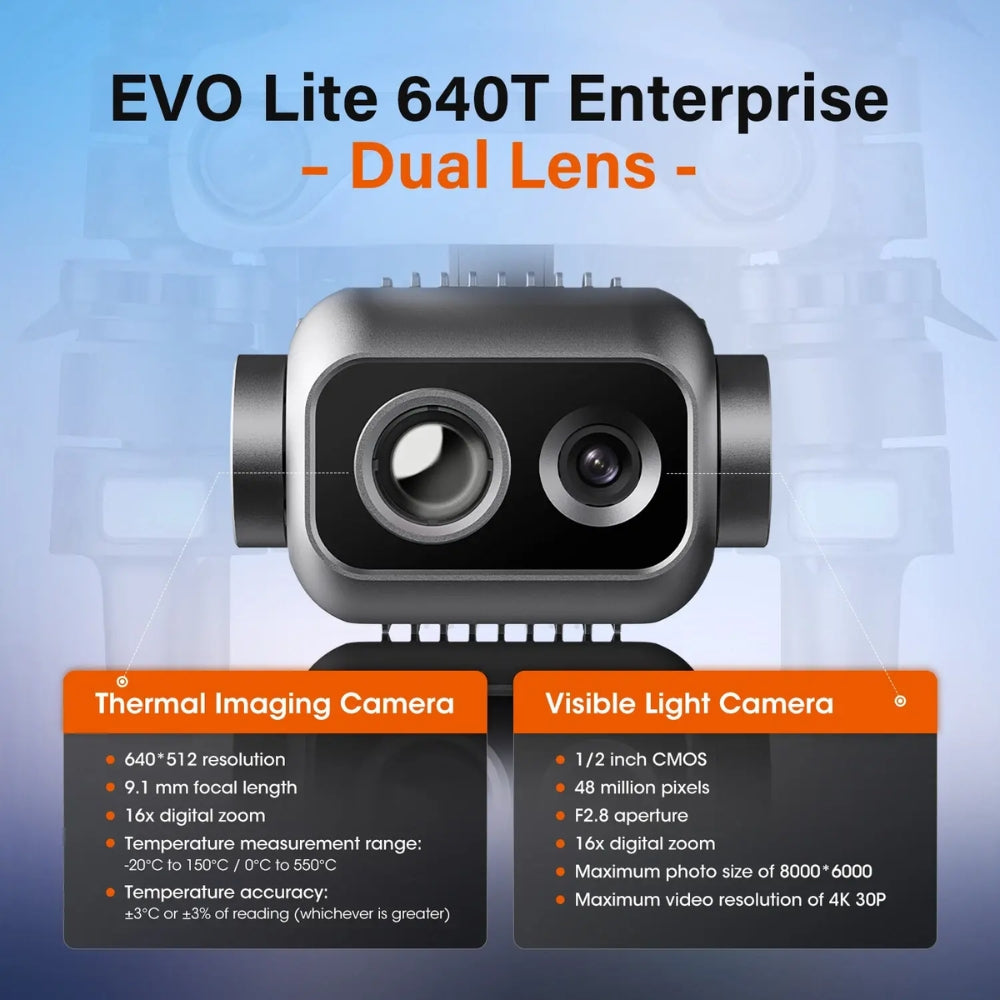

Cameras

Thermal Imaging Camera

• Resolution: 640 × 512
• Focal Length: 9.1 mm
• Digital Zoom: 16x
• Temperature Measurement Range: -20°C to 150°C / 0°C to 550°C
• Temperature Accuracy: ±3°C or ±3%

Visible Light Camera

• Sensor: 1/2 inch CMOS
• Pixels: 48 million
• Aperture: F2.8
• Digital Zoom: 16x
• Maximum Photo Size: 8000 × 6000
• Maximum Video Resolution: 4K 30P

Visual Perception System

• Wide-angle sensors at front, back, and bottom
• Dual-binocular obstacle avoidance in three directions

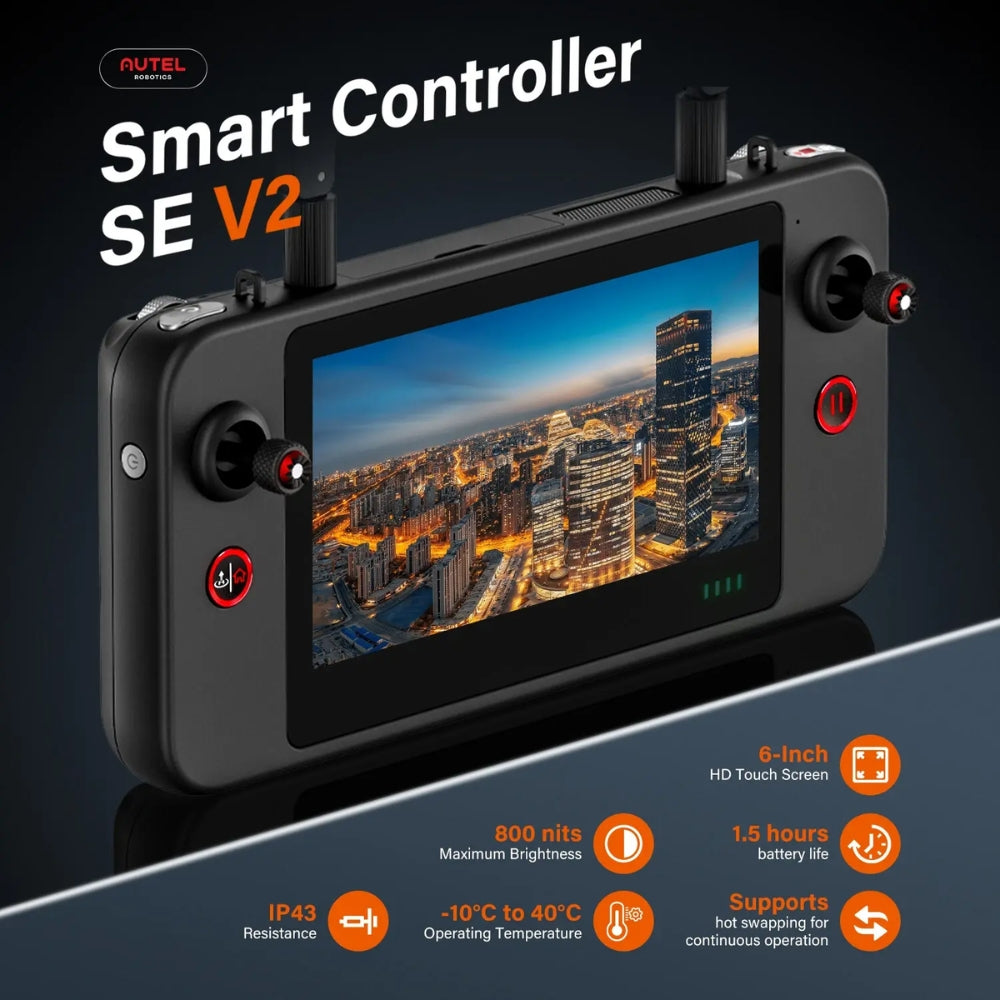

Controller – Autel Smart Controller SE V2

• Display: 6 inches, 1440 × 720 resolution, 800 nits brightness
• Battery Life: 1.5 hours, hot-swappable
• Storage: 32 GB built-in, expandable to 128 GB microSD
• Operating Temperature: -10°C to 40°C

Transmission

• Range: 12 km
• Technology: Autel SkyLink, dual-signal dual-reception
• Frequency: 2.4GHz / 5.2GHz / 5.8GHz adaptive hopping

Features

• Lightweight & Portable – Compact design for easy transport and single-person deployment
• High-Precision Visual Navigation – Accurate flight and positioning with AI assistance
• Dual-Binocular Obstacle Avoidance – Enhanced safety with sensors covering three directions
• AI Target Recognition & Positioning – Detects up to 64 object types including people, vehicles, and boats

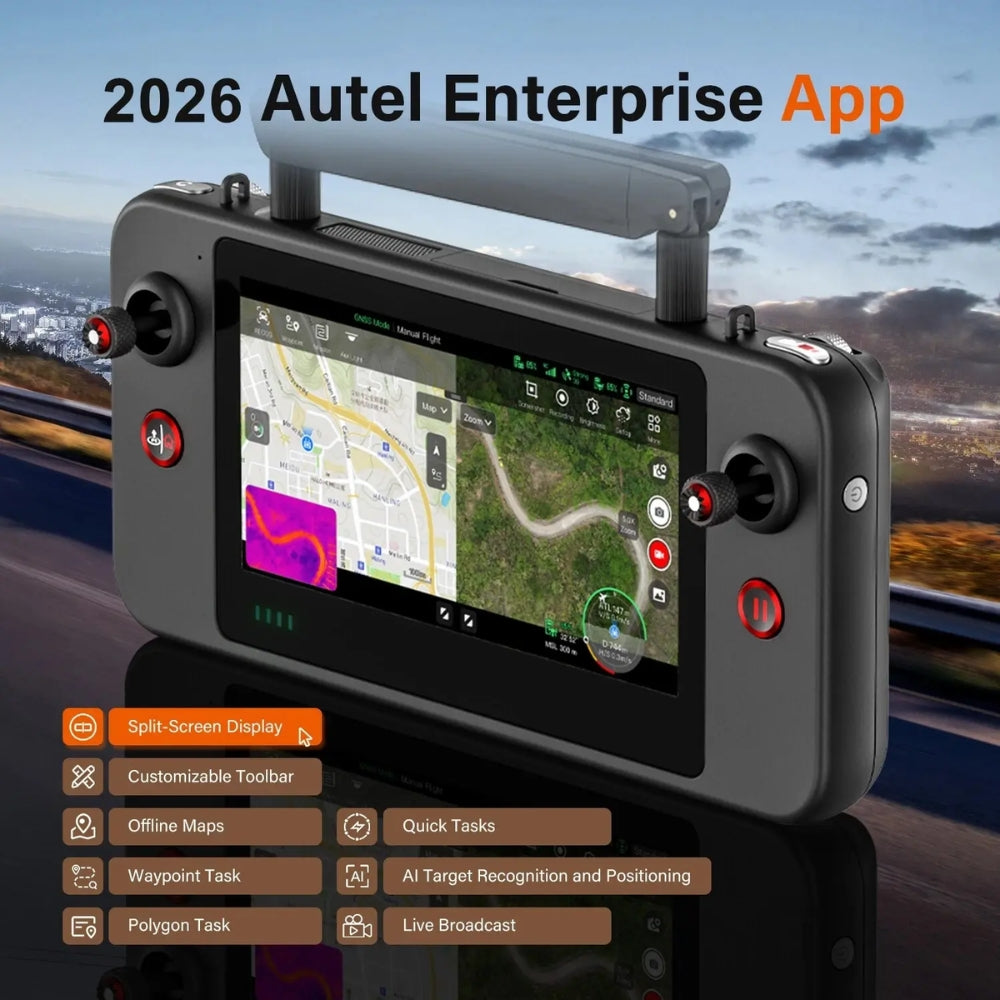

• Split-Screen Display – Visible light, infrared, and map channels for real-time situational awareness
• Customizable Toolbar – Personalized quick-access functions in the Autel Enterprise App
• Offline Maps – Enables precise flight positioning in low or no-network environments
• High-Definition Video Transmission – Anti-interference image transmission with up to 12 km range

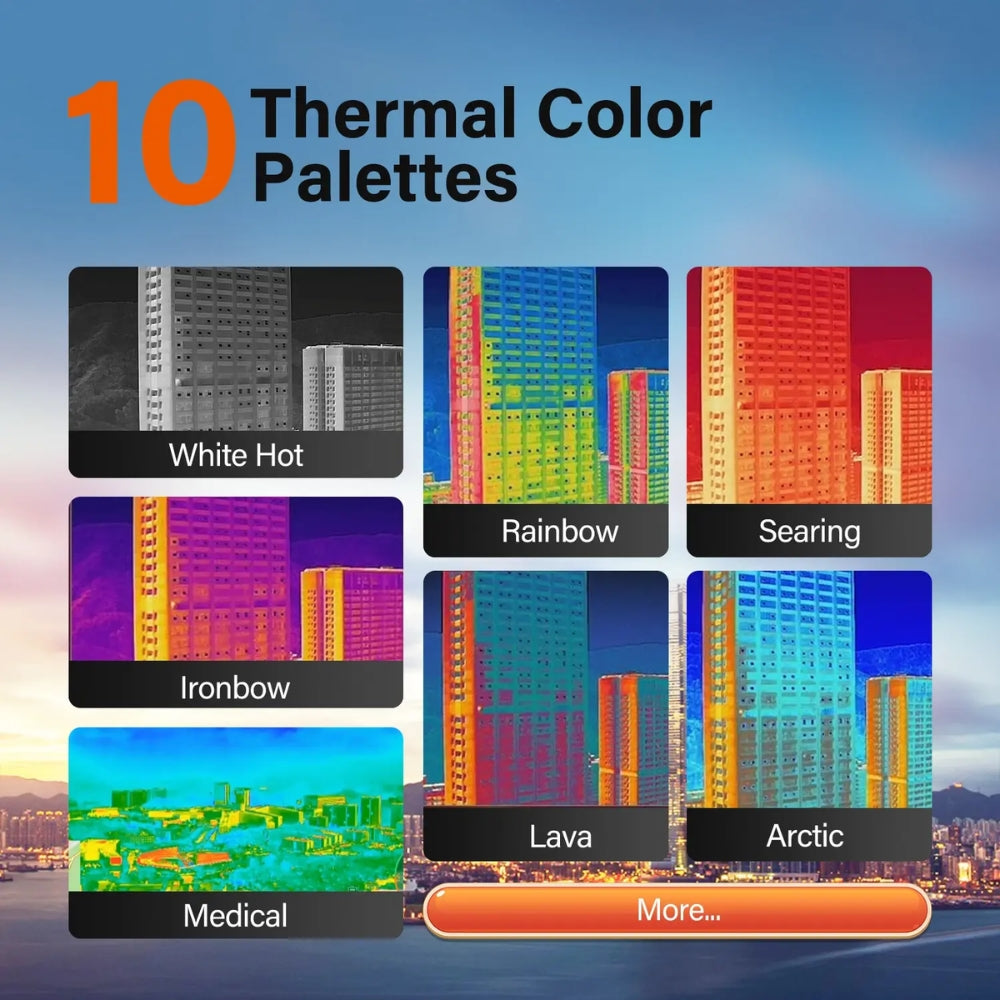

• Thermal Imaging Capability – Identifies heat sources and measures temperatures accurately
• SDK & MSDK Support – Flexible development of custom solutions and mission automation
• Autel Smart Controller SE V2 – Long battery life, high-brightness display, and extended storage

Maintenance

Battery Care:

• Use the recommended charging equipment
• Avoid overcharging or storing batteries fully depleted
• Hot-swappable batteries allow continuous operation

Camera & Gimbal:

• Keep lenses clean and free of debris
• Avoid mechanical shocks that may misalign gimbal calibration
• Perform periodic calibration of dual-gimbal system

Aircraft Body & Propellers:

• Inspect for cracks or damage before each flight
• Replace propellers showing wear or chips
• Store drone in a dry, temperature-controlled environment

Firmware & Software Updates:

• Regularly update the Autel Enterprise Flight App and aircraft firmware
• Use official sources for software to ensure security and stability

Data Security:

• Flight logs, videos, and images are AES encrypted
• Ensure passwords are set for access and follow privacy protocols

Warranty

Accidental Protection Options:

1. 1 Year Extended Warranty Protection
2. 2 Years Extended Warranty Protection

EVO Lite Enterprise Series – Frequently Asked Questions (FAQ)

Color Options:

• Available in Gray only.

Battery Compatibility:

• Batteries are interchangeable with the EVO Lite Series.

Battery Charging Time:

• Fully depleted battery takes ~90 minutes to charge.

Image Transmission Range:

• Open environment without interference:
• FCC standard: Up to 12 km (7.4 miles)

Compatible Remote Controllers:

• Autel Smart Remote SE V2 (6-inch screen)
• Autel Smart Remote V3 (7.9-inch screen)

Remote Controller Battery:

• SE V2: Battery is replaceable and hot-swappable
• V3: Battery is not replaceable

Memory Expansion (SE V2):

• 32GB internal storage
• Supports up to 128GB microSD card

SE V2 Multi-Charger:

• Charges up to 4 batteries simultaneously

Camera Options:

• 6K Camera
• 640T Thermal Camera

Camera Interchangeability:

• Between 6K and 640T: Yes
• Between Enterprise and standard Lite Series: No

Camera Vertical Shooting:

• Not supported

Software Supported:

• Autel Enterprise software

Industries Suitable For:

• Public safety
• Emergency rescue
• Industrial inspections
• Other professional applications

Third-Party Payloads:

• Not supported

MSDK Support:

• Full MSDK support available with Smart Remote V3

Firmware Upgrade Methods:

• Online Update (OTA): via Autel Enterprise app
• Offline Update: SD card with firmware inserted into remote controller
