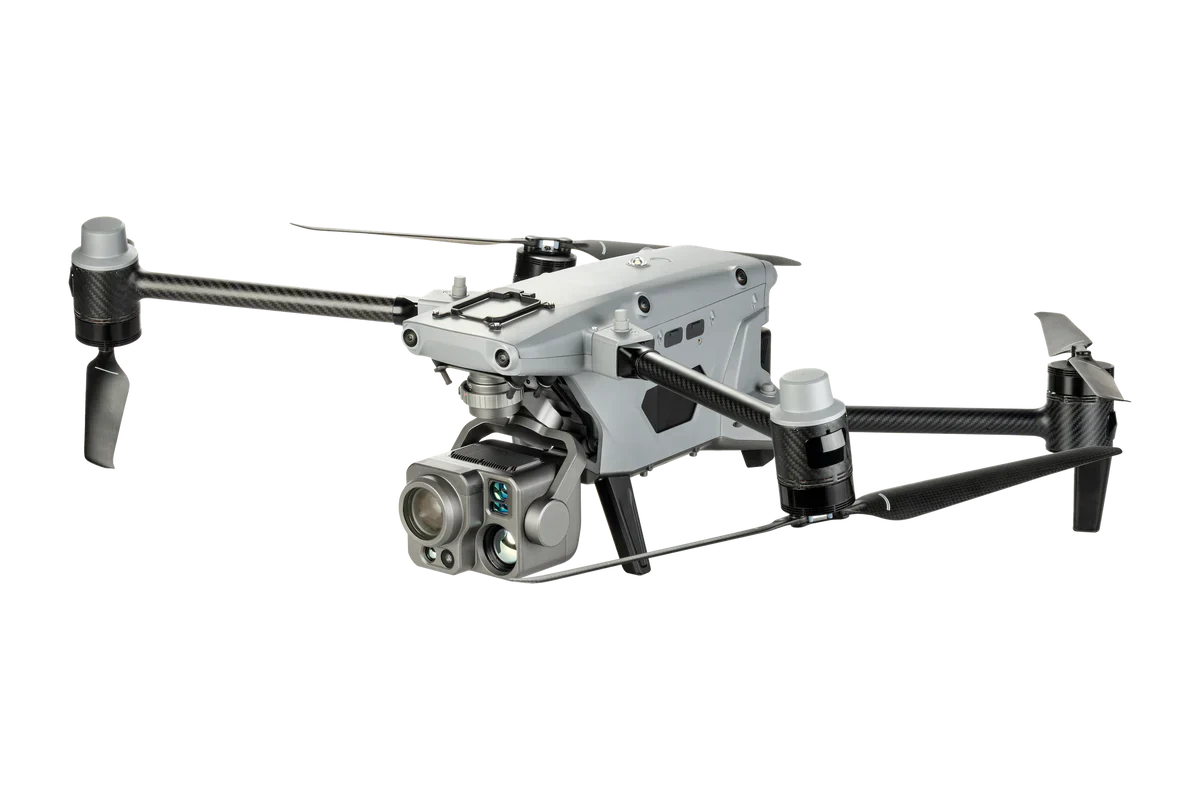

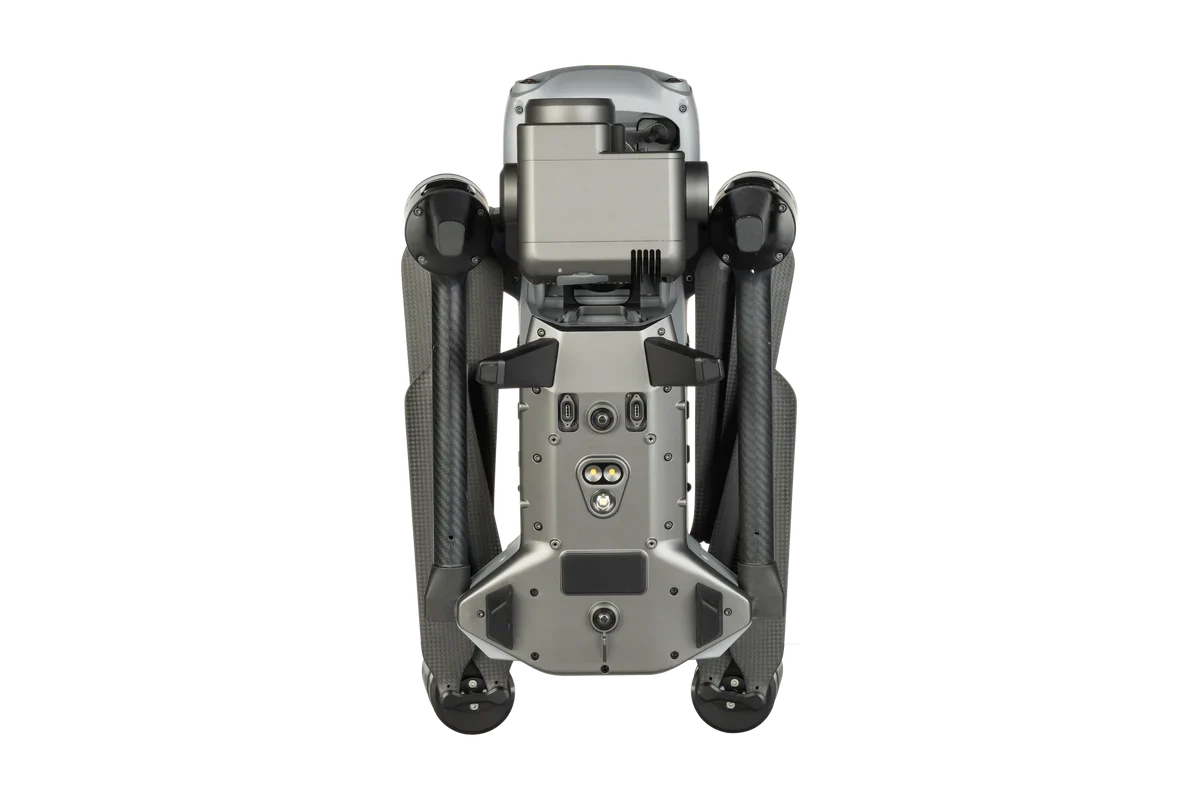

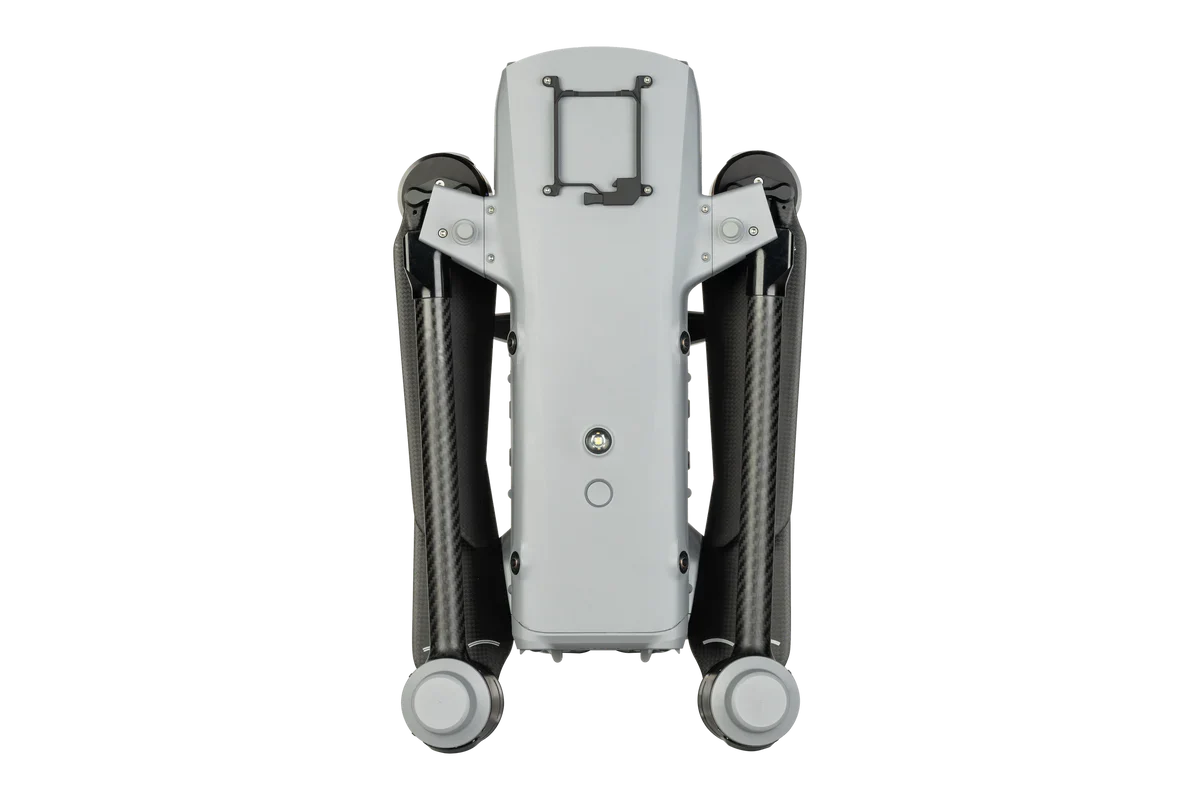

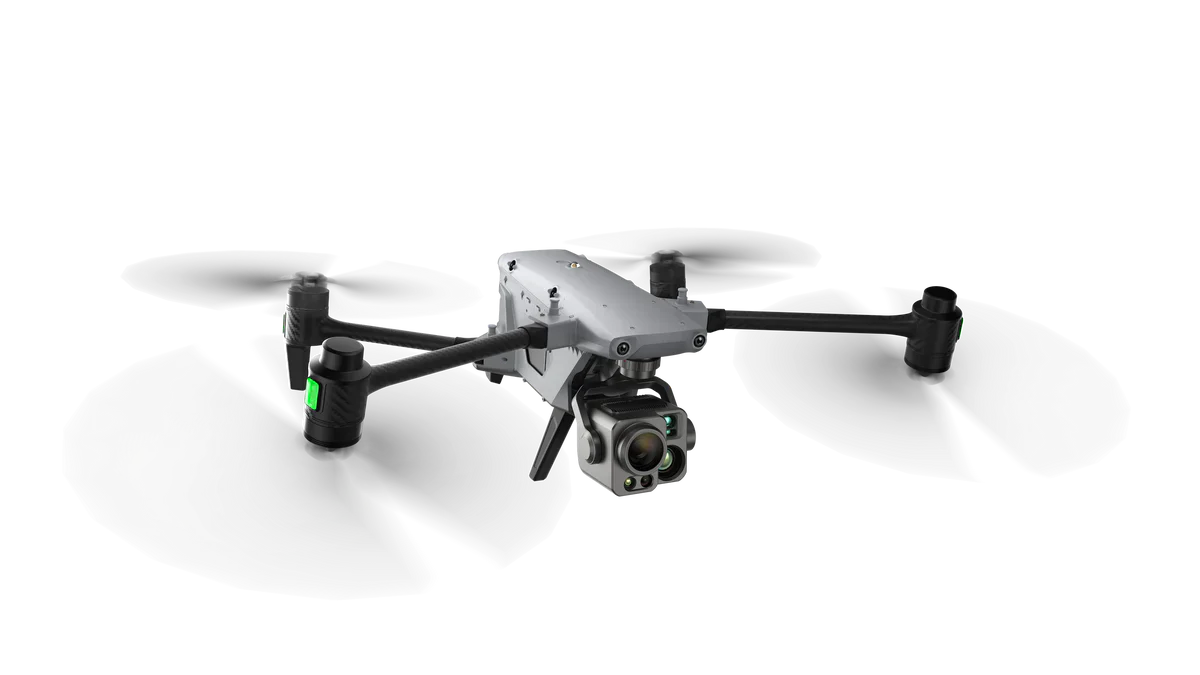

Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera

Specifications

1. Brand: Autel Robotics
2. Model: Alpha Industrial Drone
3. SKU: 102002550
4. UPC: 889520209359
5. Compatibility: Autel Alpha

Camera System

1. Visual Wide Camera: 48MP, 1/2" CMOS sensor, 84° diagonal field of view
2. Visual Tele Camera: 8MP, 1/1.8" CMOS sensor, up to 4K video

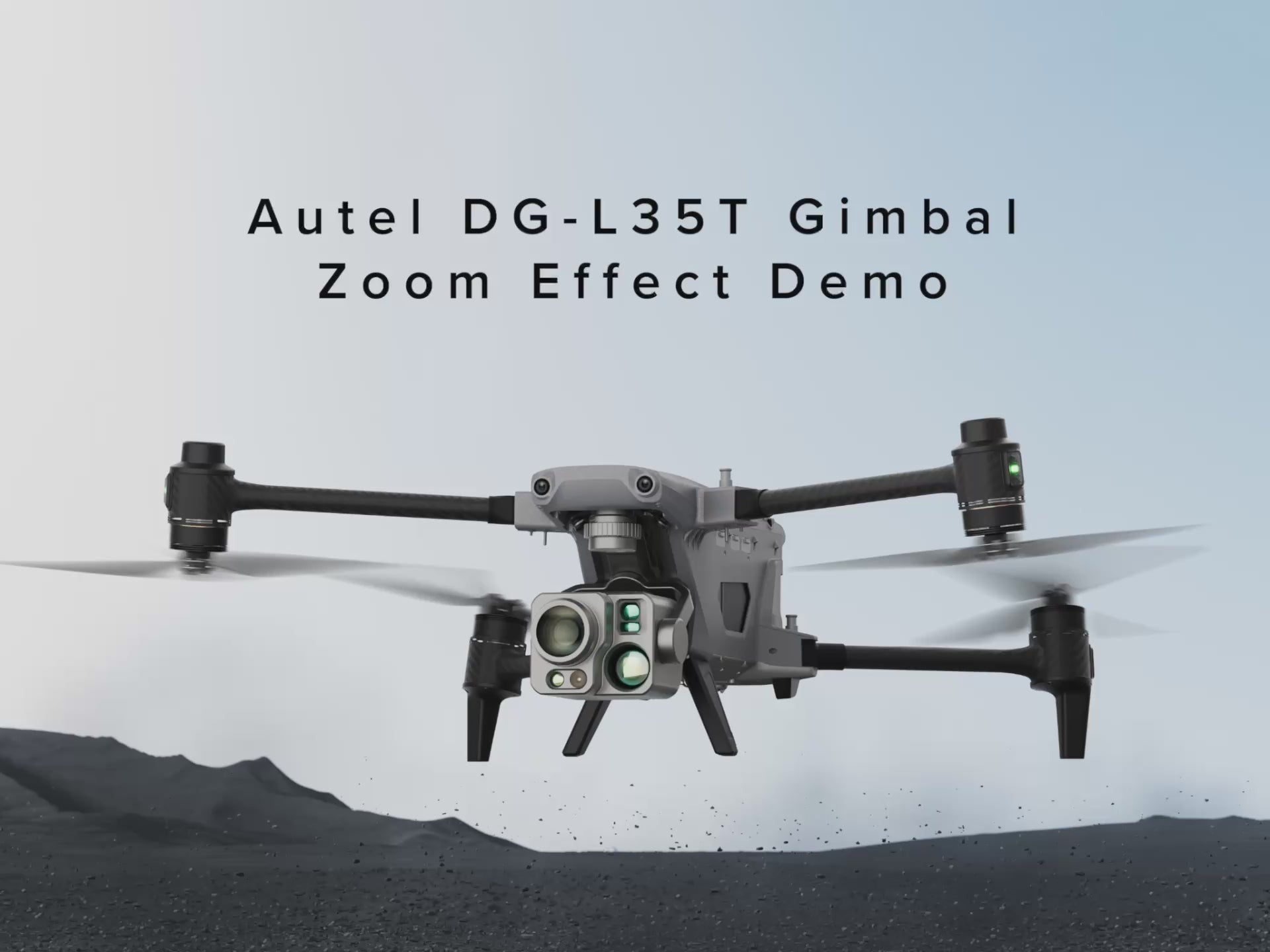

3. Optical Zoom: Up to 35x
4. Digital Zoom: Up to 560x

Thermal Imaging

1. Sensor: Uncooled VOx microbolometer
2. Resolution: 640 × 512
3. Temperature Range: -4°F to 1022°F
4. Thermal Digital Zoom: Up to 56x
5. Focal Lengths: 13mm (wide) and 45mm (tele)

Laser Rangefinder

1. Range: 33 ft to 1.25 miles
2. Provides distance, latitude, longitude, and height data

Flight Performance

1. Max Flight Time: Up to 40 minutes (no wind)
2. Max Speed: Up to 56 mph
3. Wind Resistance: Up to 27 mph
4. Water & Dust Rating: IP55

Transmission

1. Skylink 3.0 Transmission Range: Up to 12.4 miles
2. Frequency Support: 900 MHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
3. Video Transmission: 1080p30

Features

1. 5-in-1 Imaging System with wide and tele visual cameras, dual thermal cameras, and laser rangefinder

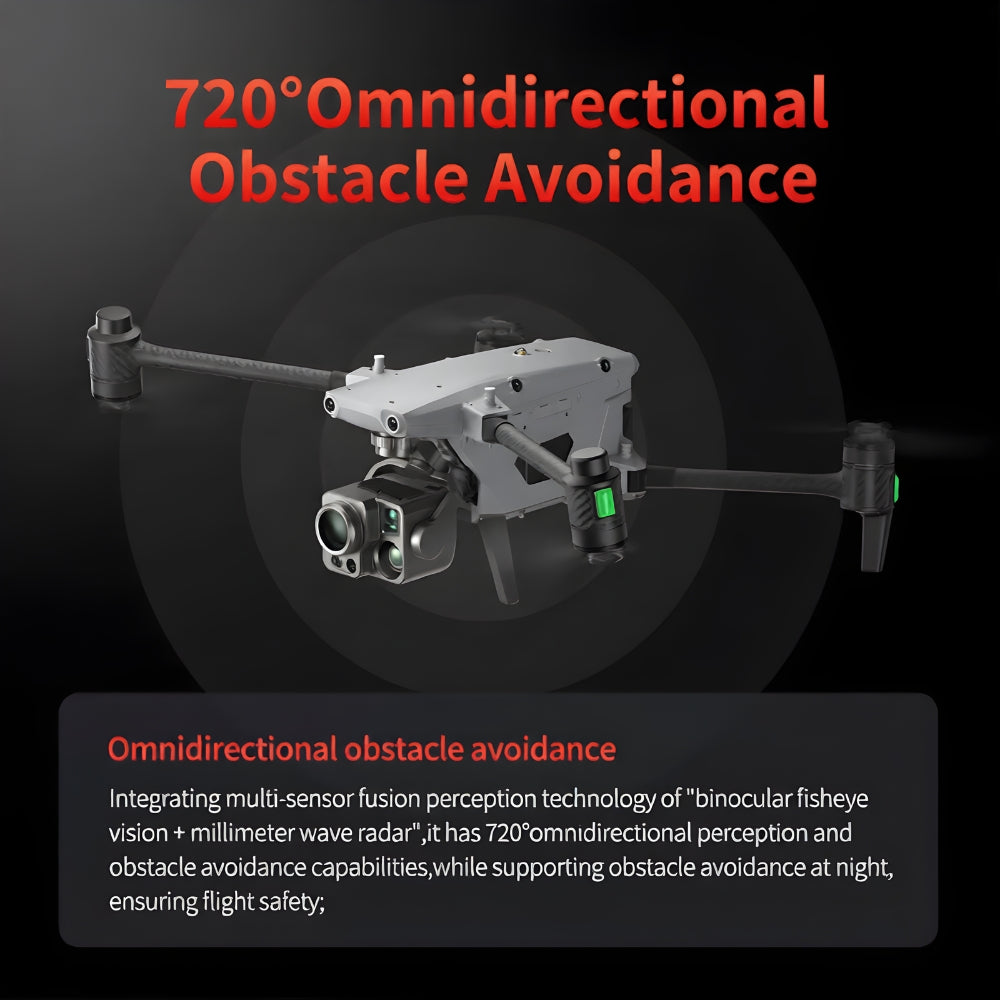

2. 720° Omnidirectional Obstacle Avoidance using fisheye vision and millimeter-wave radar
3. A-Mesh Fleet Networking for multi-drone management by a single operator
4. Advanced Anti-Interference Technology with GNSS visual positioning and adaptive frequency hopping

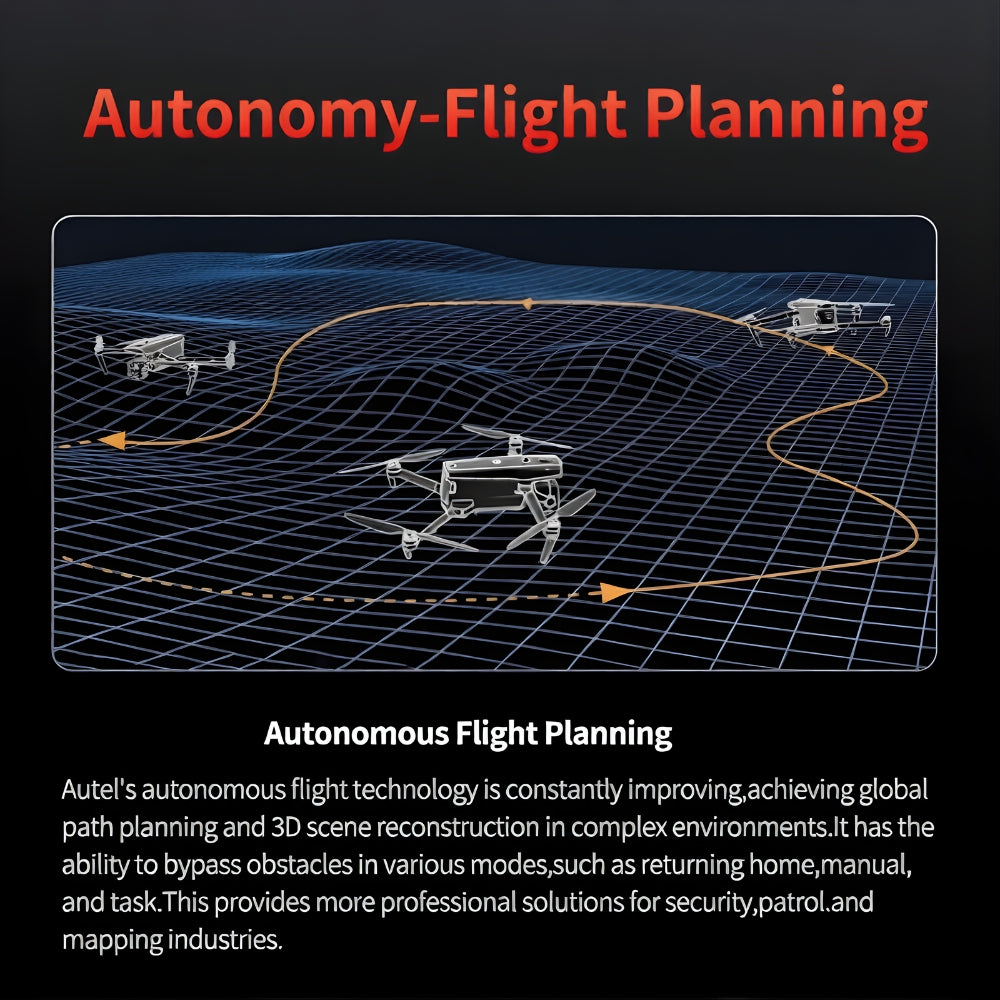

5. Autonomy Engine for automatic 3D flight path planning in complex environments
6. Multi-Payload Platform with three mounting points for accessories
7. Smart Mission Types including Quick Mission, Waypoint, and Polygon flight planning
8. AI Target Recognition for detecting people, vehicles, and boats automatically
9. Tripod Mode for stable hovering and target tracking
10. AES-256 Data Encryption for secure storage of photos, videos, and flight logs
11. Hot-Swappable Dual Batteries for extended operational efficiency

Maintenance

To ensure optimal performance and longevity of the drone:

1. Regularly clean camera lenses using the included lens cleaner, soft brush, and dust blower.
2. Inspect the gimbal and dampeners before each flight to ensure proper stabilization.
3. Store the drone and batteries in a dry, dust-free environment.
4. Avoid operating the drone in extreme weather conditions beyond its IP55 rating.
5. Update firmware regularly using the Autel Enterprise app to maintain security and functionality.
6. Charge batteries with the provided charger and avoid over-discharging.

Routine inspection and maintenance will help maintain flight stability, imaging accuracy, and system reliability.

Warranty

Accidental Protection Options:

1. 1 Year Extended Warranty Protection
2. 2 Years Extended Warranty Protection


Autel Alpha – Frequently Asked Questions (FAQ)

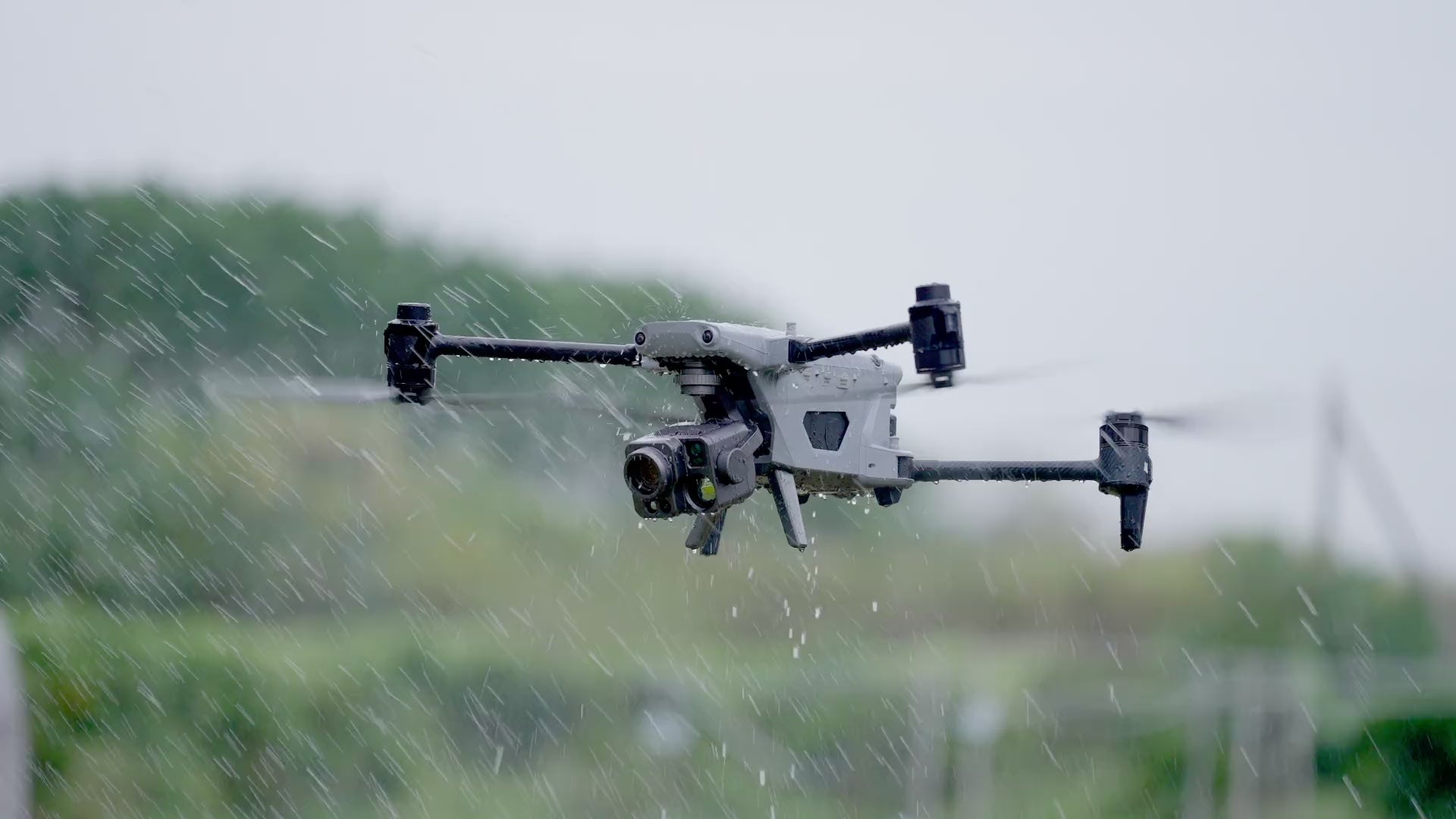

🌧️ What is the IP rating? Can I fly in the rain?

Autel Alpha is rated IP55, meaning it is protected against dust and low-pressure water jets.

However:

1. The IP rating may decrease over time due to wear and tear.
2. Do not operate the drone in rainfall heavier than 100 mm within 24 hours.

🔋 Are the batteries hot-swappable?

Yes. You can replace one battery while the drone remains powered on:

1. Remove one smart battery.
2. Insert a fully charged battery immediately.
3. Wait until the battery indicator lights are fully illuminated.
4. Repeat the process for the second battery.

⏱️ How long does it take to charge a battery?

Each battery takes approximately 90 minutes to fully charge.

📡 What is the image transmission range?

In an open, unobstructed, interference-free environment:

• FCC standard: Up to 15 km (9.3 miles)

🎮 Does the remote controller support battery replacement?

No. The remote controller battery is not replaceable.

🔧 Payload & Expansion

Which payloads are compatible?

1. L35T gimbal camera
2. Spotlight
3. Loudspeaker
4. Tracer
5. Third-party certified payloads developed via the Autel Payload SDK

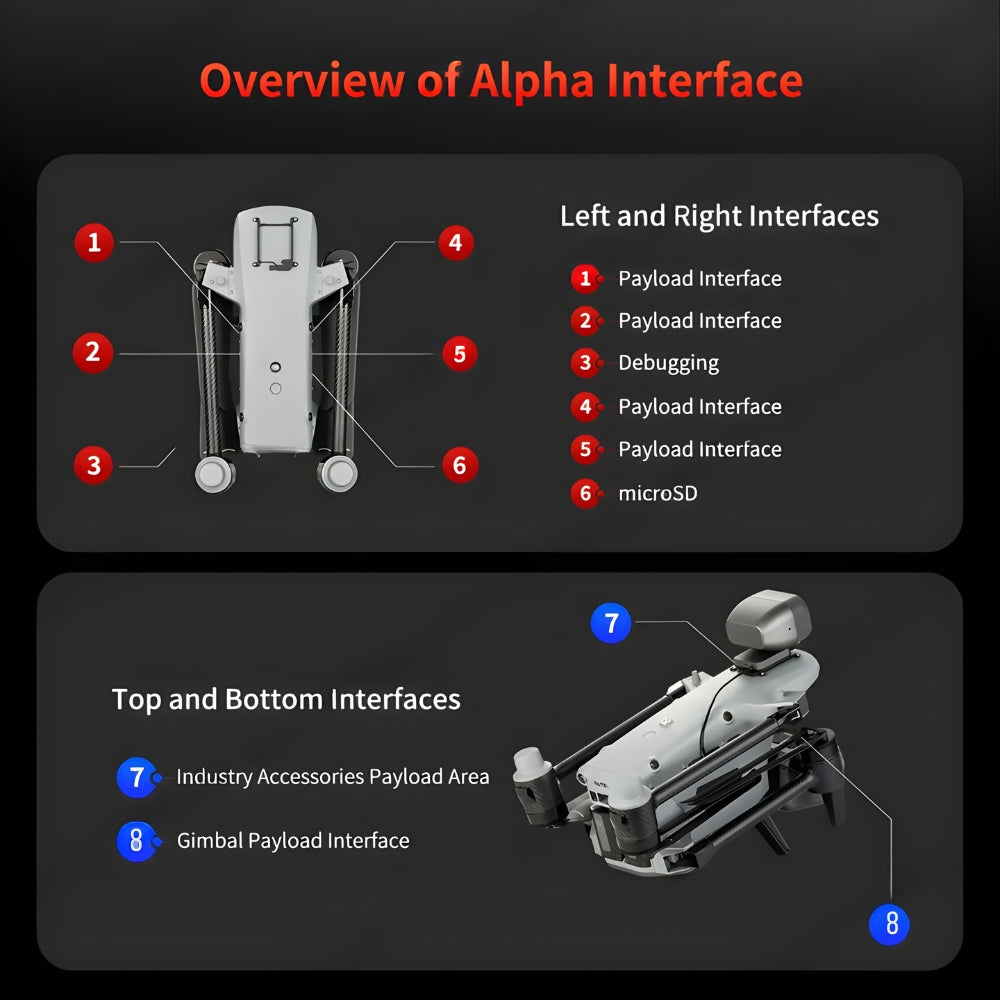

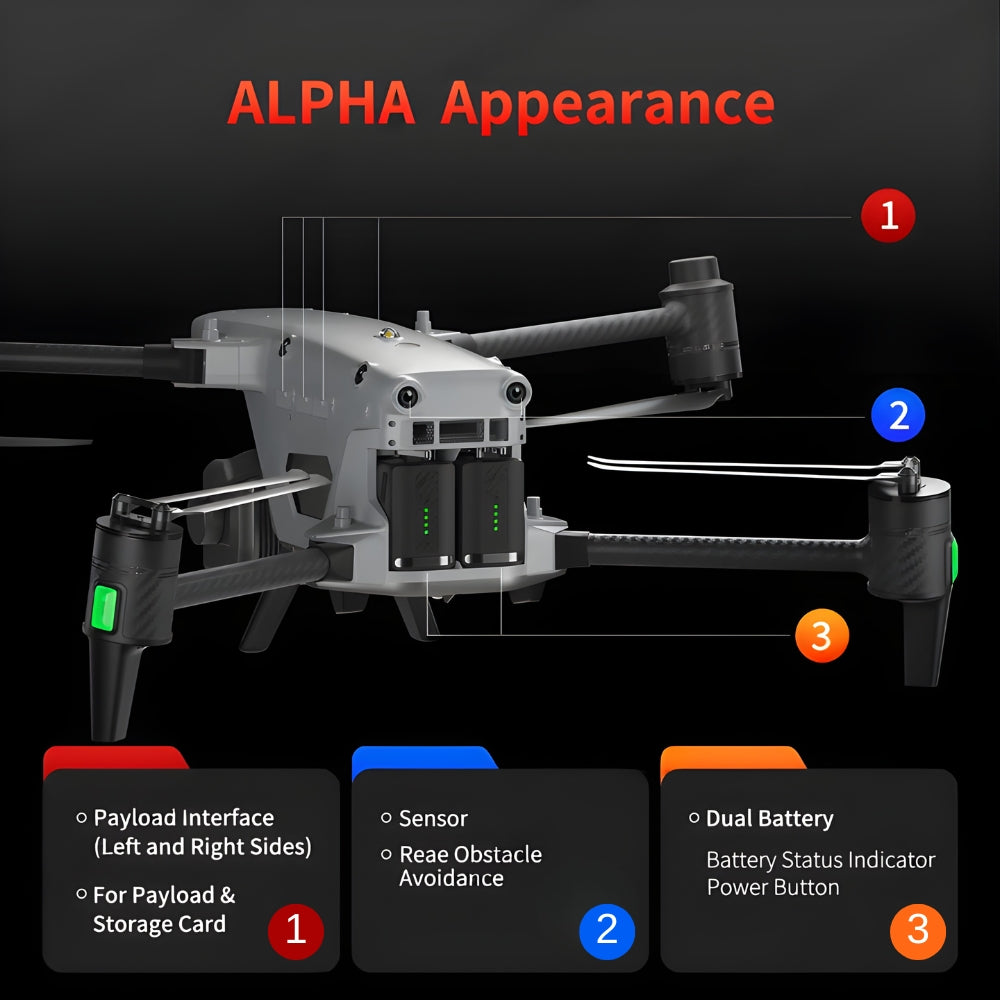

How many payload interfaces are available?

Autel Alpha has 5 payload interfaces:

1. 1 bottom gimbal interface
2. 4 top payload interfaces

How many payloads can be mounted at the same time?

Up to two payloads simultaneously.
Can the camera be replaced?
Yes. The modular design allows payload replacement.
Can EVO Max 4T or 4N cameras be mounted on Autel Alpha?
No. They are not compatible.

💻 What software is supported?

Autel Alpha supports Autel Enterprise software.

🏢 Which industries is Autel Alpha suitable for?

Autel Alpha offers:

1. Enhanced flight performance
2. Advanced obstacle avoidance
3. Expanded hardware compatibility

It is well-suited for:

1. Public safety
2. Energy and utility inspection
3. Emergency management
4. Other professional and industrial applications
