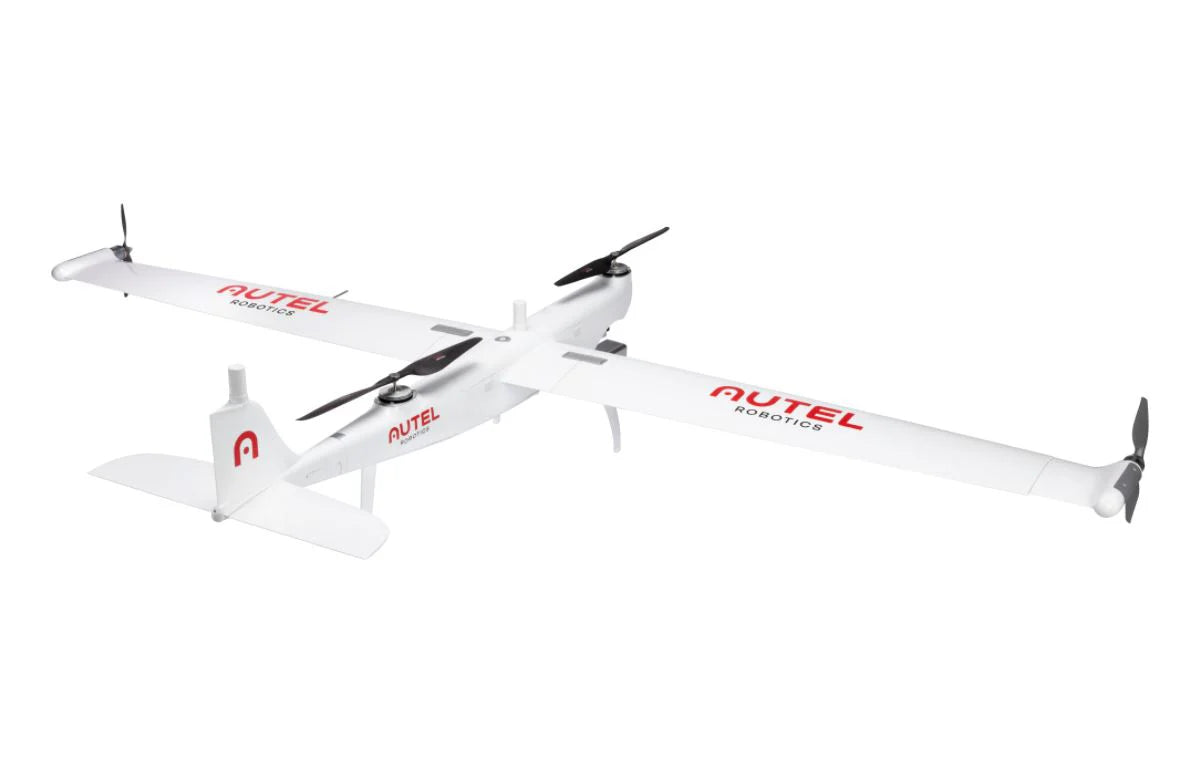

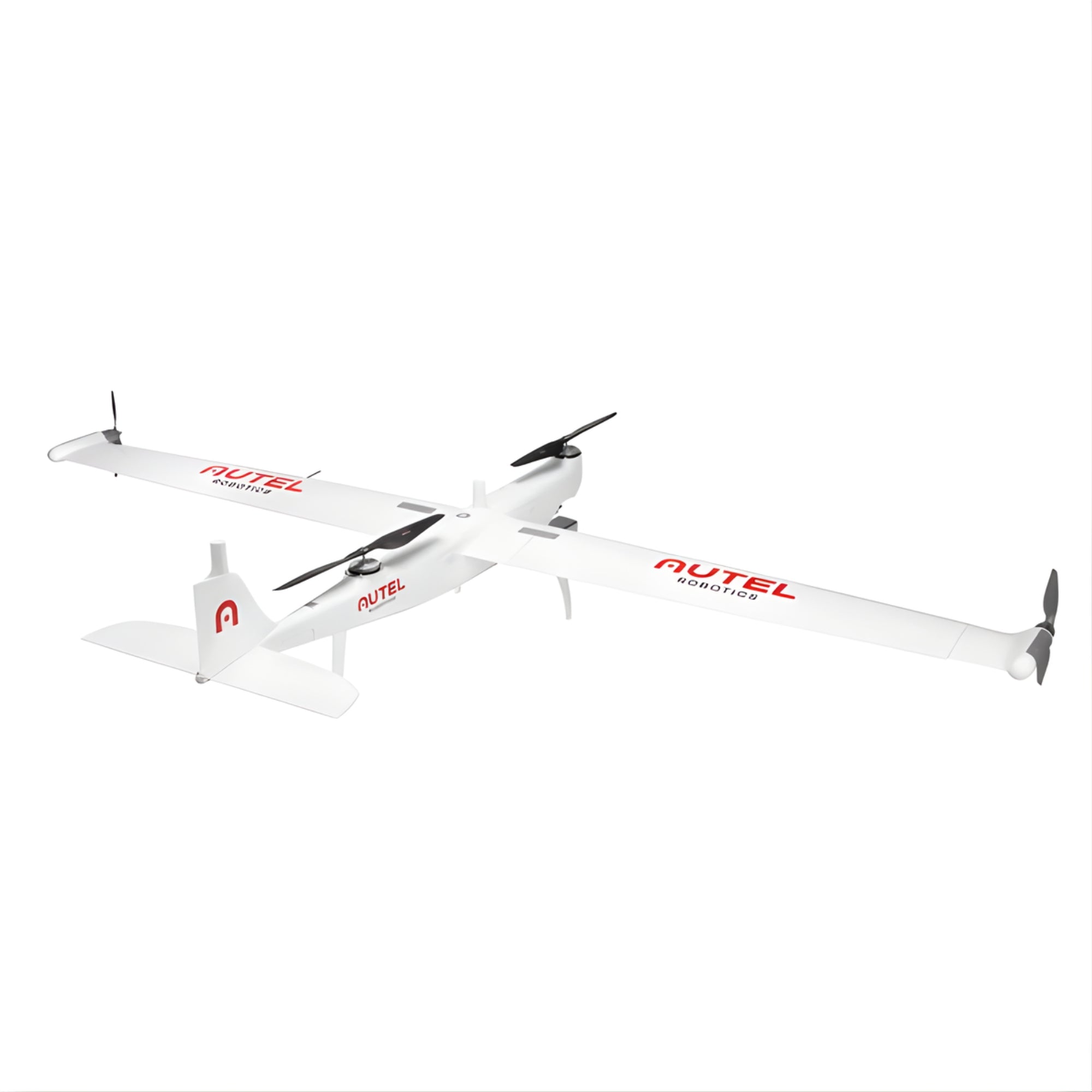

Autel Dragonfish Standard Drone with T3 Payload Camera – High Performance

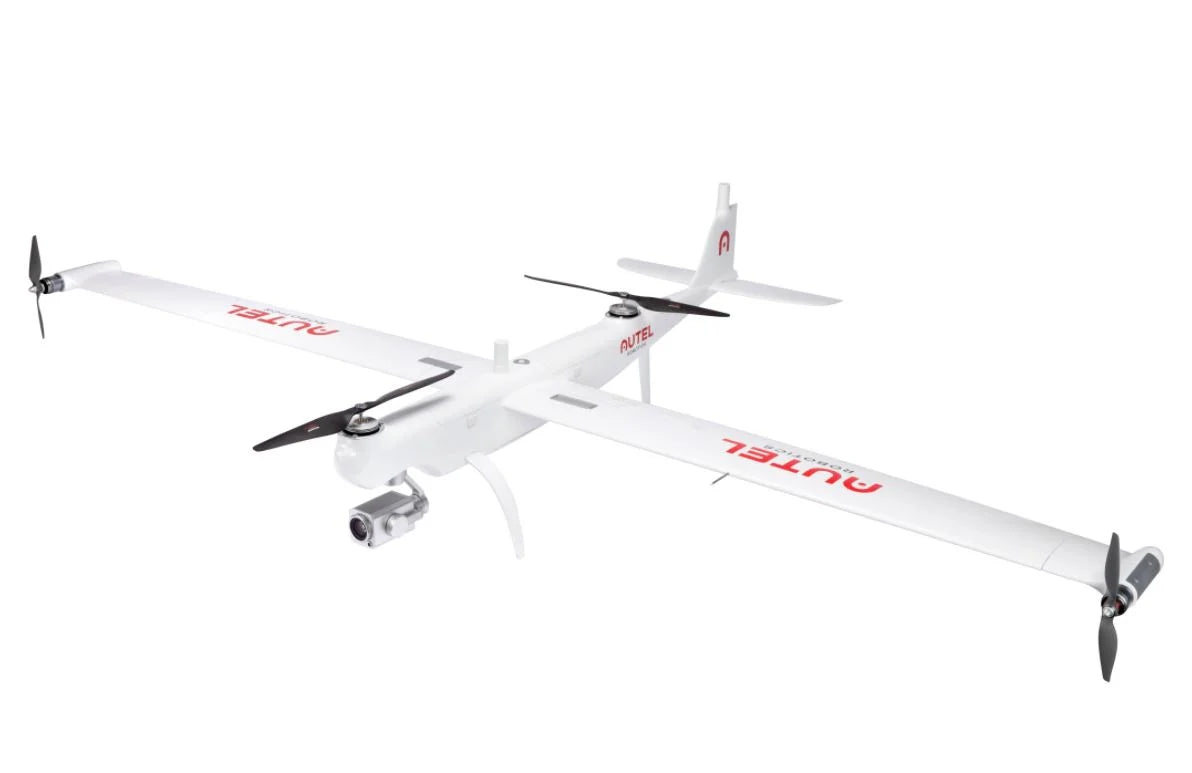

The Autel Dragonfish Standard with T3 Payload Camera is a professional aerial imaging solution designed for advanced monitoring, inspection, and security operations. It features the Autel Robotics T3 Sensor Payload, a powerful multi-sensor system that combines visual and thermal imaging technologies to deliver reliable data from the air. The payload includes a 12MP wide-angle camera for capturing broad aerial views, a 640 × 512 infrared thermal camera for detecting heat signatures, and a 4K camera with 20× optical zoom for capturing highly detailed images from long distances. The integrated three-axis gimbal stabilization ensures smooth and stable footage during flight. Designed to work seamlessly with Dragonfish Lite, Standard, and Pro drones, the T3 payload enhances aerial capabilities for industries such as public safety, infrastructure inspection, surveillance, and search-and-rescue missions.

Specifications

1. Wide-Angle Camera: 12 MP camera for capturing high-resolution overview images
2. Thermal Camera: 640 × 512 pixel infrared sensor for heat detection
3. Zoom Camera: 4K video camera with 20× optical zoom capability
4. Gimbal System: Three-axis stabilized gimbal for steady footage
5. Payload Type: Multi-sensor visual and thermal imaging payload
6. Drone Compatibility: Dragonfish Lite, Dragonfish Standard, and Dragonfish Pro
7. Imaging Modes: Supports both visual and thermal imaging operations

Features

1. Advanced Multi-Sensor Payload – Combines visual and thermal cameras for versatile aerial imaging.
2. 12MP Wide-Angle Camera – Captures clear and wide aerial views for situational awareness.
3. High-Resolution Thermal Imaging – 640 × 512 infrared sensor detects temperature differences and heat signatures.
4. Powerful 20× Optical Zoom – Allows operators to observe and inspect distant objects with precision.
5. 4K Video Capability – Delivers high-quality video for professional monitoring and documentation.
6. Three-Axis Gimbal Stabilization – Ensures smooth and stable imaging even during dynamic flight.
7. Broad Drone Compatibility – Designed for use with Dragonfish Lite, Standard, and Pro drones.
8. Professional Applications – Suitable for security operations, infrastructure inspection, search and rescue, and surveillance.

Maintenance

1. Lens Cleaning: Regularly clean the camera lenses and thermal sensor with a soft microfiber cloth to maintain image clarity.
2. Gimbal Inspection: Check the three-axis gimbal before flights to ensure it moves freely without obstruction.
3. Firmware Updates: Keep the drone and payload firmware updated for improved performance and stability.
4. Proper Storage: Store the payload in a dry and dust-free environment when not in use.
5. Connection Check: Periodically inspect mounting points and connectors to ensure secure attachment to the drone.
6. Safe Transport: Use a protective carrying case during transport to prevent physical damage.

Autel Dragonfish Standard FAQ

What is the maximum payload capacity of the Dragonfish?

1. Dragonfish Standard: Maximum payload weight is 1.5 kg.
2. Dragonfish Pro: Maximum payload weight is 2.2 kg.

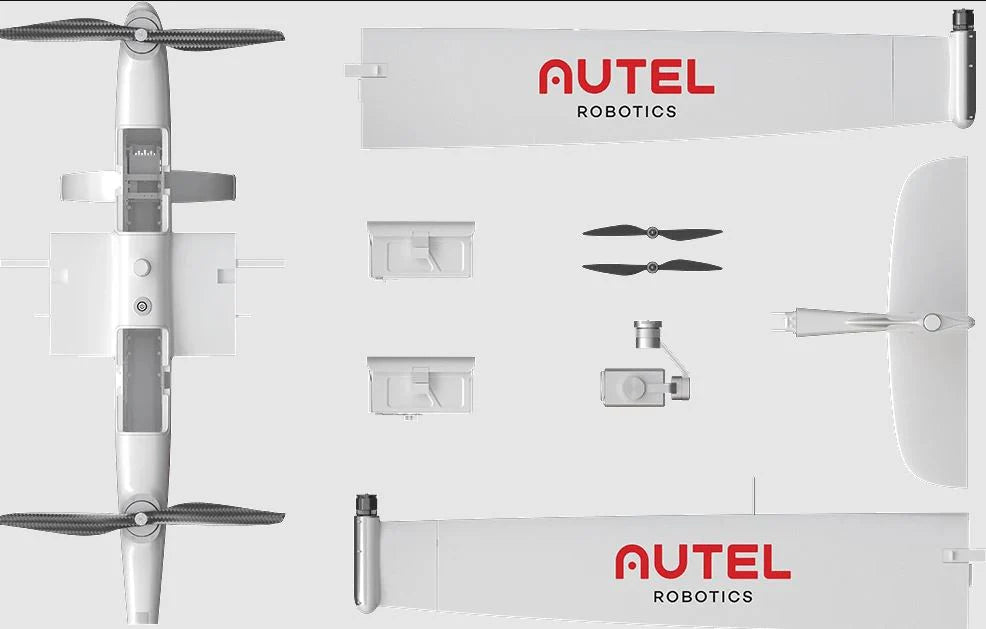

Are the blades removable?

The blades on both sides of the wings are quick-release and can be easily removed and stored. The blades at the front and rear generally do not need to be removed. If replacement is required, a tool set is needed.

What is the ingress protection (IP) rating? Can it fly in rain?

The Dragonfish has an IP43 rating and can operate in light to moderate rain.

What is the maximum flight time?

1. Dragonfish Standard: Up to 107 minutes.
2. Dragonfish Pro: Up to 179 minutes.

What is the effective image transmission range?

1. With base station: Up to 30 km
2. Ground station only: Up to 15 km

What is the resolution of the Dragonfish gimbal camera?

Dual-Lens Camera

1. 4K UHD optical zoom camera with 20× optical zoom and 12× digital zoom
2. 48 MP high-resolution wide-angle camera

Triple-Sensor Camera

1. 4K UHD optical zoom camera with 20× optical zoom and 12× digital zoom
2. 48 MP wide-angle camera
3. 640 × 512 infrared thermal camera with up to 2000 m detection range

Can the gimbal mount be replaced?

Yes. The gimbal mount is replaceable. Currently, Dragonfish supports dual-lens and triple-sensor cameras, with additional mounts potentially available in the future.

If the batteries have different charge levels, can the aircraft take off?

1. If the difference is less than 12%, takeoff is allowed.
2. If the difference is greater than 12%, the app will display “Battery power difference is too large” and takeoff will not be permitted.

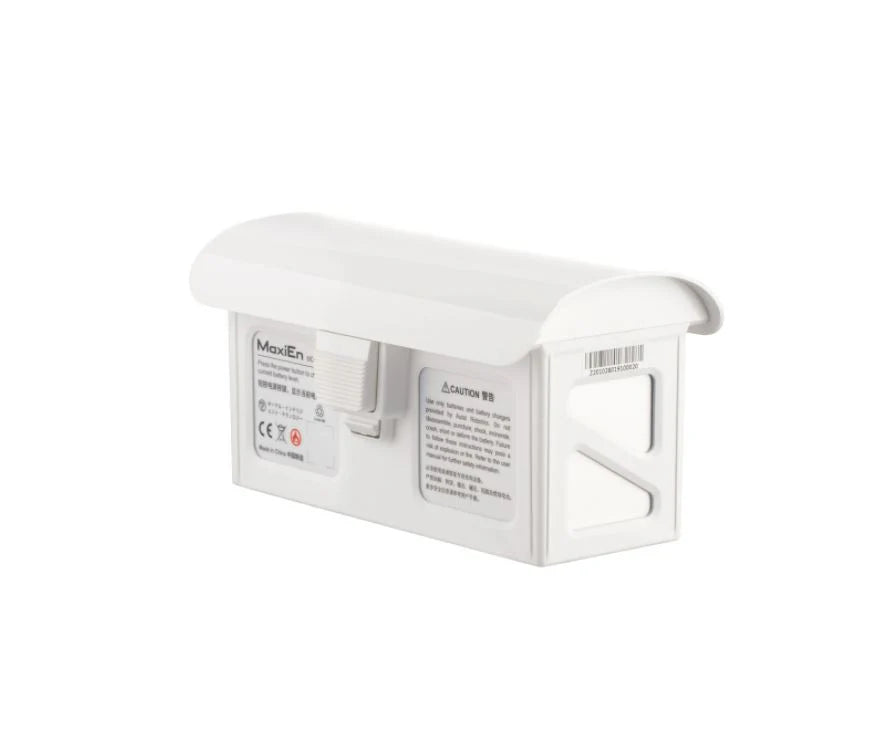

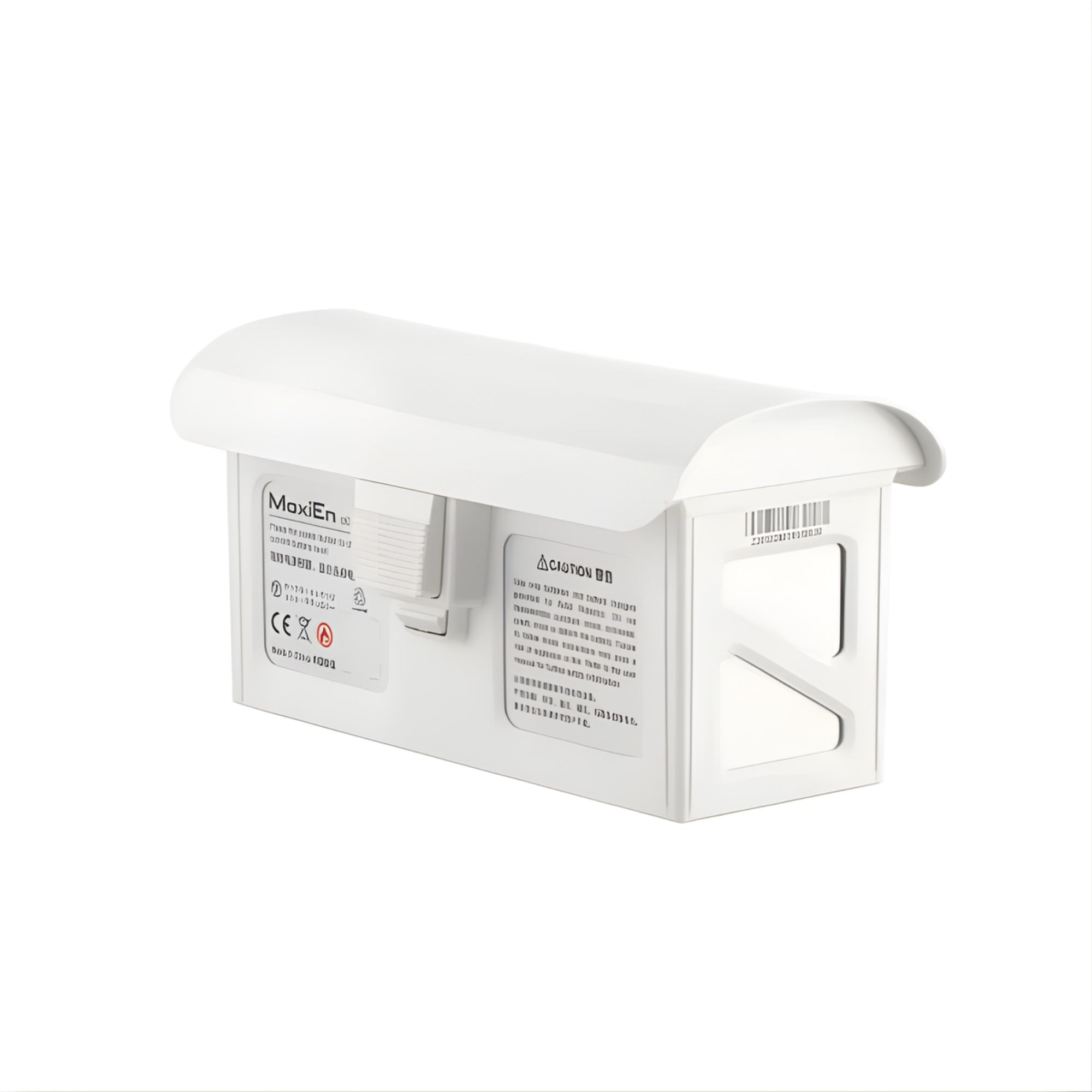

Can the battery be carried on an airplane?

The battery has a 277.2 Wh rating, which cannot be carried on board aircraft according to airline regulations.

Can the battery operate in low temperatures?

Operating temperature range: -20°C to 40°C.
Low temperatures reduce performance, so plan flight time accordingly.
For best performance, keep battery temperature above 15°C before flight.

If charging between -20°C and 5°C, the battery automatically activates its self-heating function before charging.

How should the battery be maintained?

1. Charge and discharge both batteries together.
2. Allow batteries to cool to room temperature before charging.
3. Ideal charging temperature: 15°C – 40°C.
4. Ideal storage temperature: 22°C – 28°C, dry environment.
5. If unused for 10+ days, discharge to 20–30% before storage. Recharge every 3 months.

How long does it take to charge the batteries?

1. Single battery: ~120 minutes
2. Two batteries: ~240 minutes

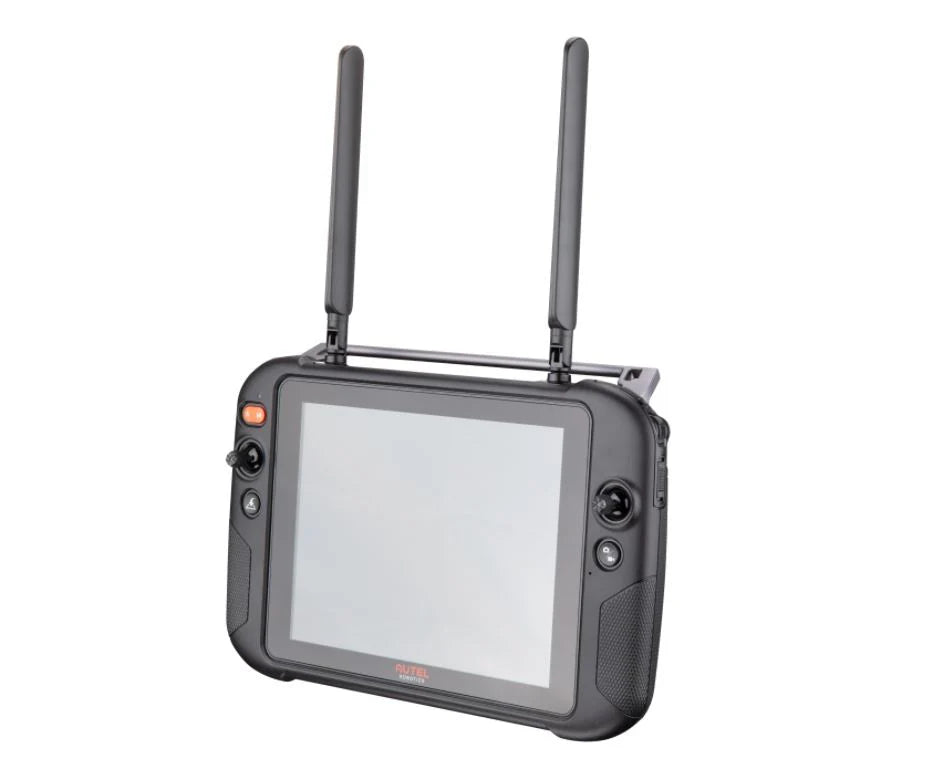

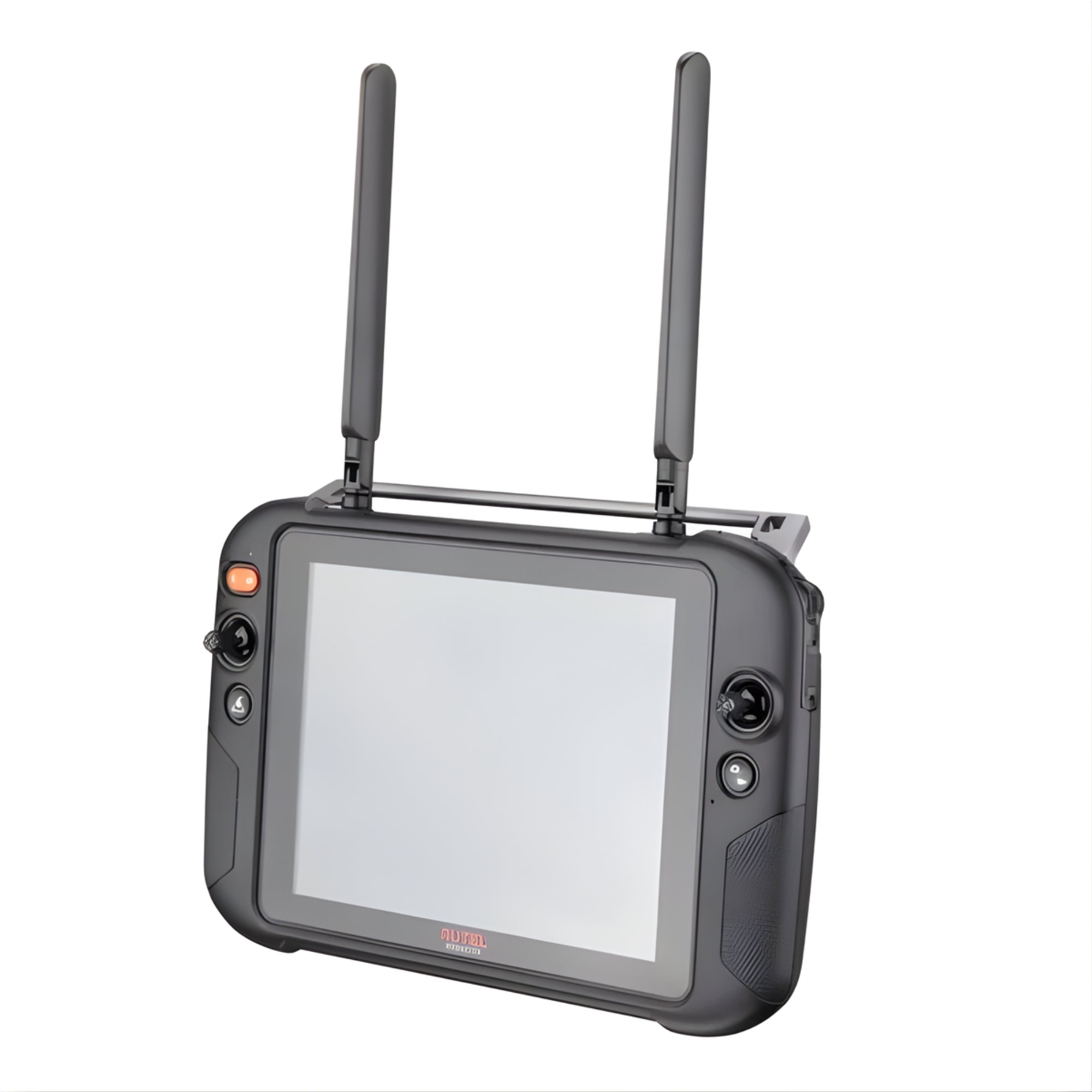

Does the ground station have internal storage?

Yes. It includes 256 GB internal storage.

What is the operating temperature of the ground station?

-20°C to 40°C

What is the battery life of the ground station?

1. 3 hours at maximum brightness
2. 4.5 hours at 50% brightness

How long does it take to charge the ground station?

Approximately 120 minutes.

What are the screen specifications?

1. 9.7-inch touchscreen
2. 2048 × 1536 resolution
3. 1000 nits brightness

What video output interface is available?

The ground station provides an HDMI output interface.

Can the Dragonfish ground station be used with other products?

No. It is designed specifically for Dragonfish systems.

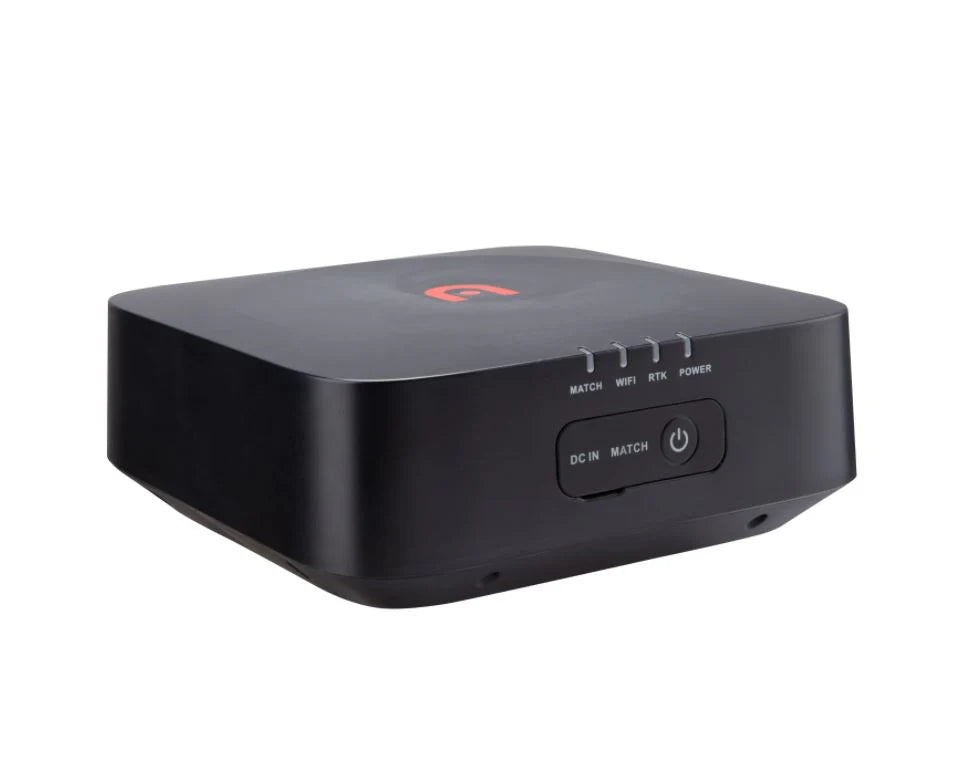

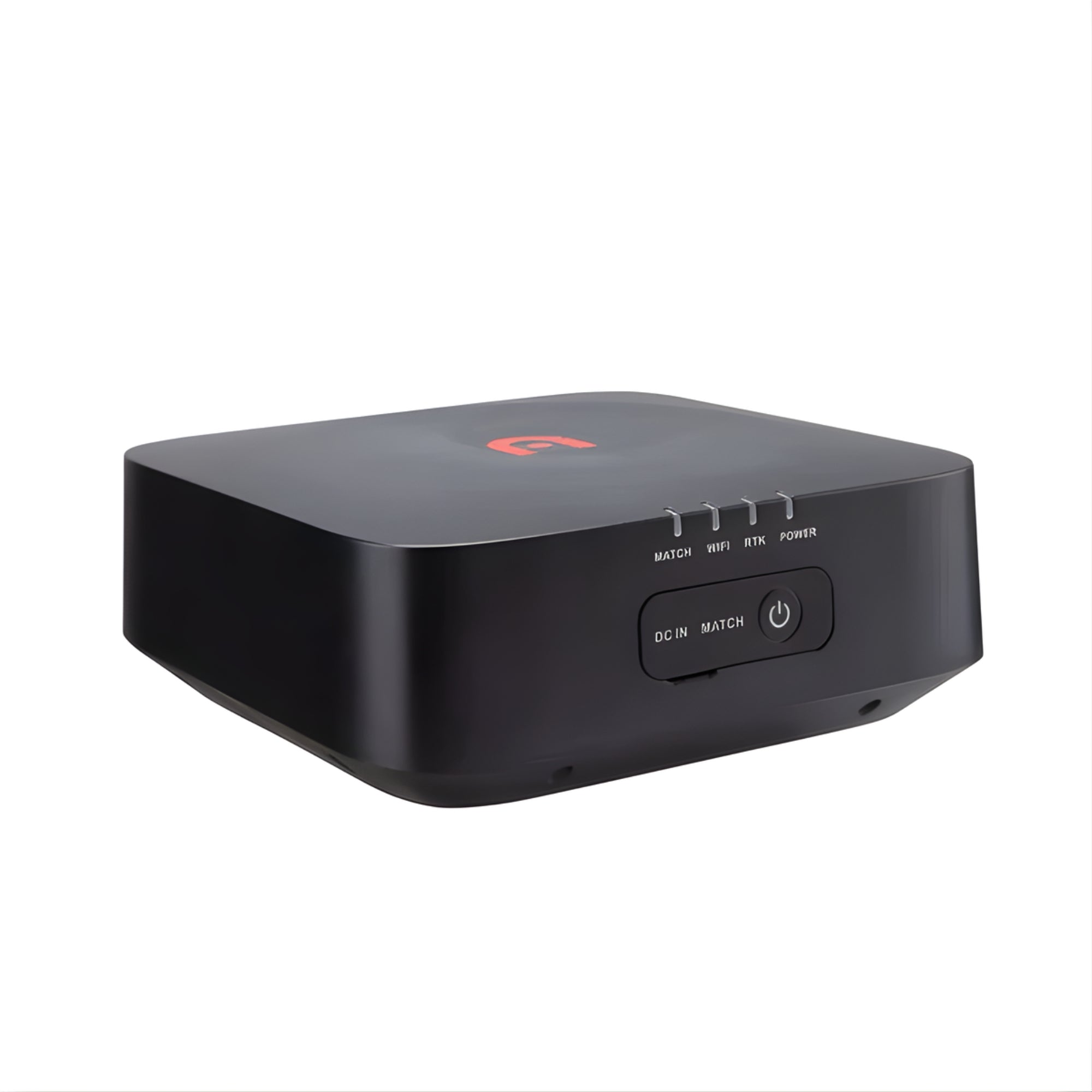

What is the operating duration of the base station?

More than 7.5 hours on a full charge.

How long does it take to charge the base station?

Approximately 120 minutes.

What is the positioning accuracy of the base station?

Single Point Mode

1. Horizontal: 1.5 m (RMS)
2. Vertical: 3.0 m (RMS)

RTK Mode

1. Horizontal: 1 cm + 1 ppm (RMS)
2. Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems are supported?

Supports multiple GNSS systems simultaneously:

1. GPS: L1, L2, L5
2. BeiDou: B1, B2, B3
3. GLONASS: F1, F2
4. Galileo: E1, E5A, E5B

Which software application is supported?

Currently supports the Autel Voyager App.

How do you upgrade the firmware?

Method 1 – USB Upgrade

1. Power on aircraft, ground station, and base station.
2. Download firmware from Autel official website.
3. Copy firmware to a USB drive.
4. Insert the USB drive into the ground station and follow the on-screen instructions.

Method 2 – Online Upgrade

1. Power on and connect all devices.
2. Connect the ground station to the internet.
3. The system will automatically detect available updates.
4. Download and select Upgrade.
5. Wait for “Firmware Upgrade Complete”.

What industries can Dragonfish be used in?

Dragonfish is suitable for many professional applications, including:

1. Law enforcement
2. Forest fire monitoring
3. Power line inspection
4. Traffic monitoring
5. Coastal security and anti-smuggling
6. Agricultural monitoring
7. Infrastructure inspection and more
