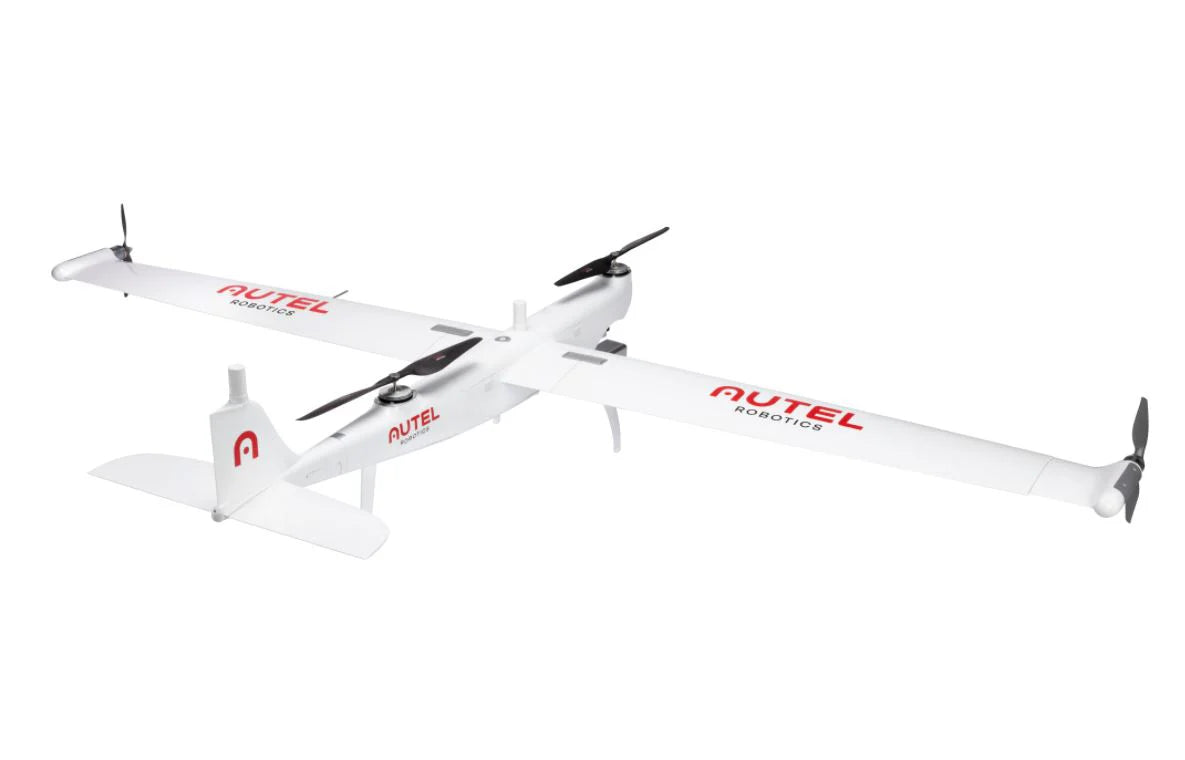

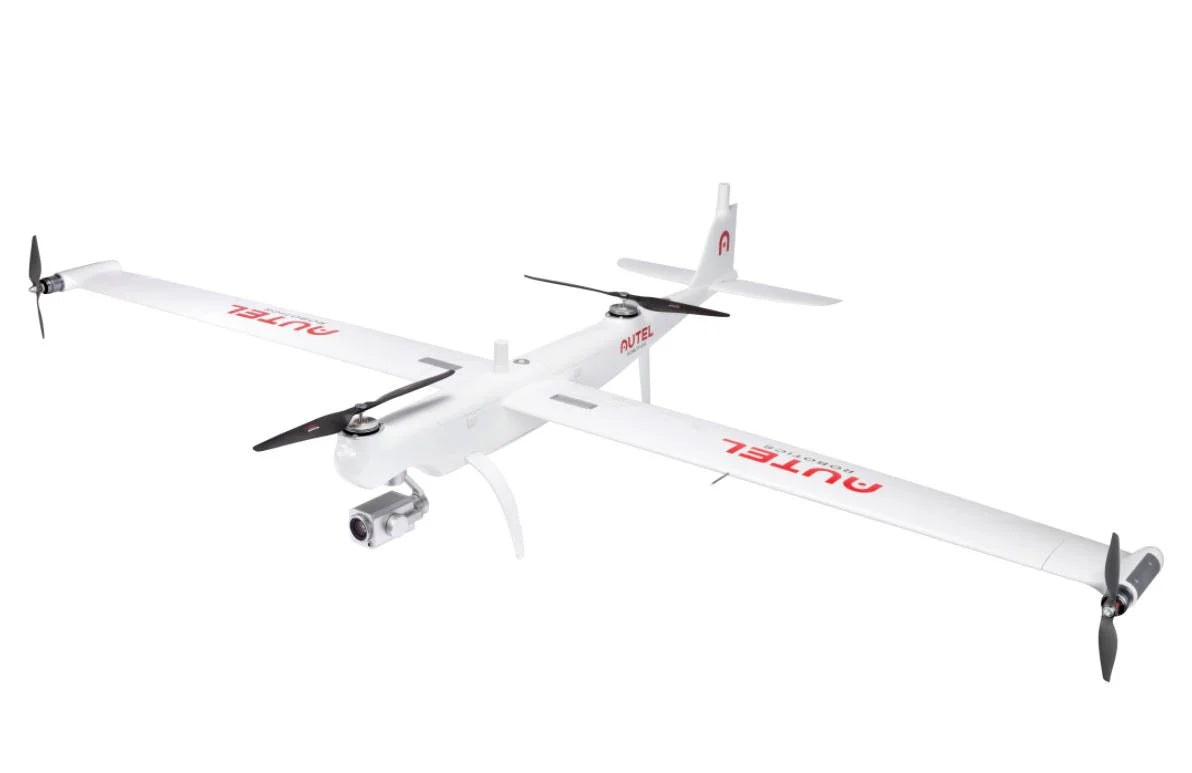

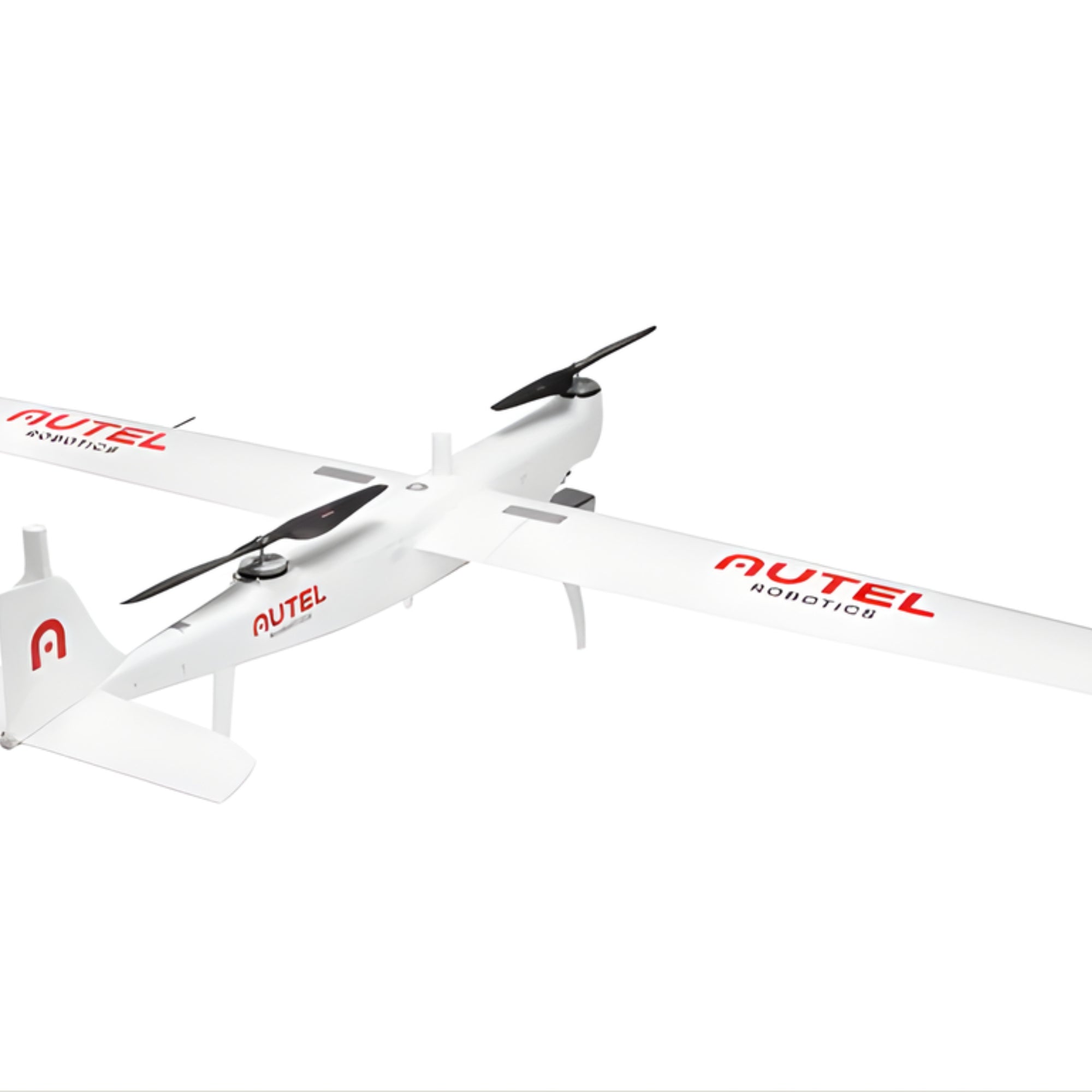

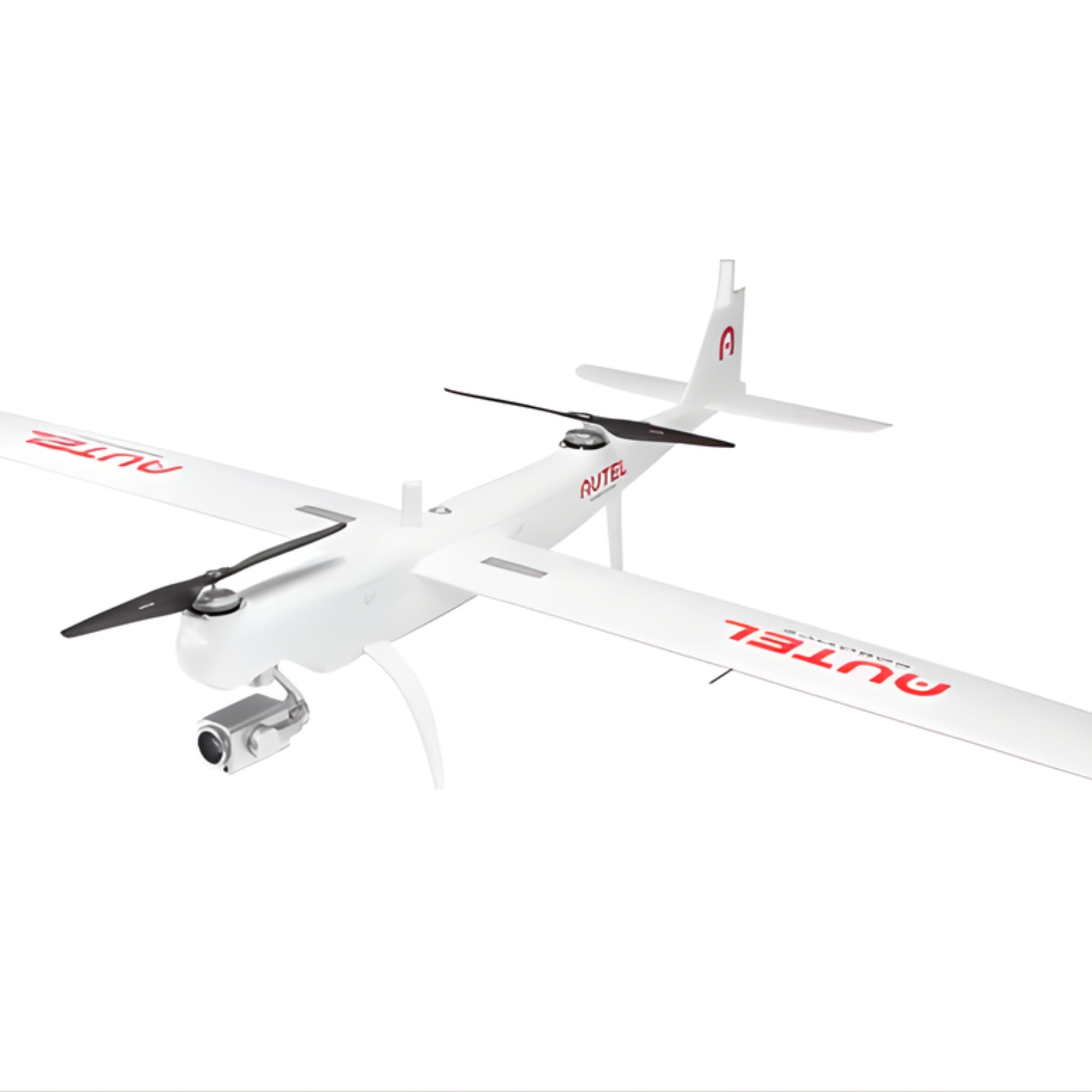

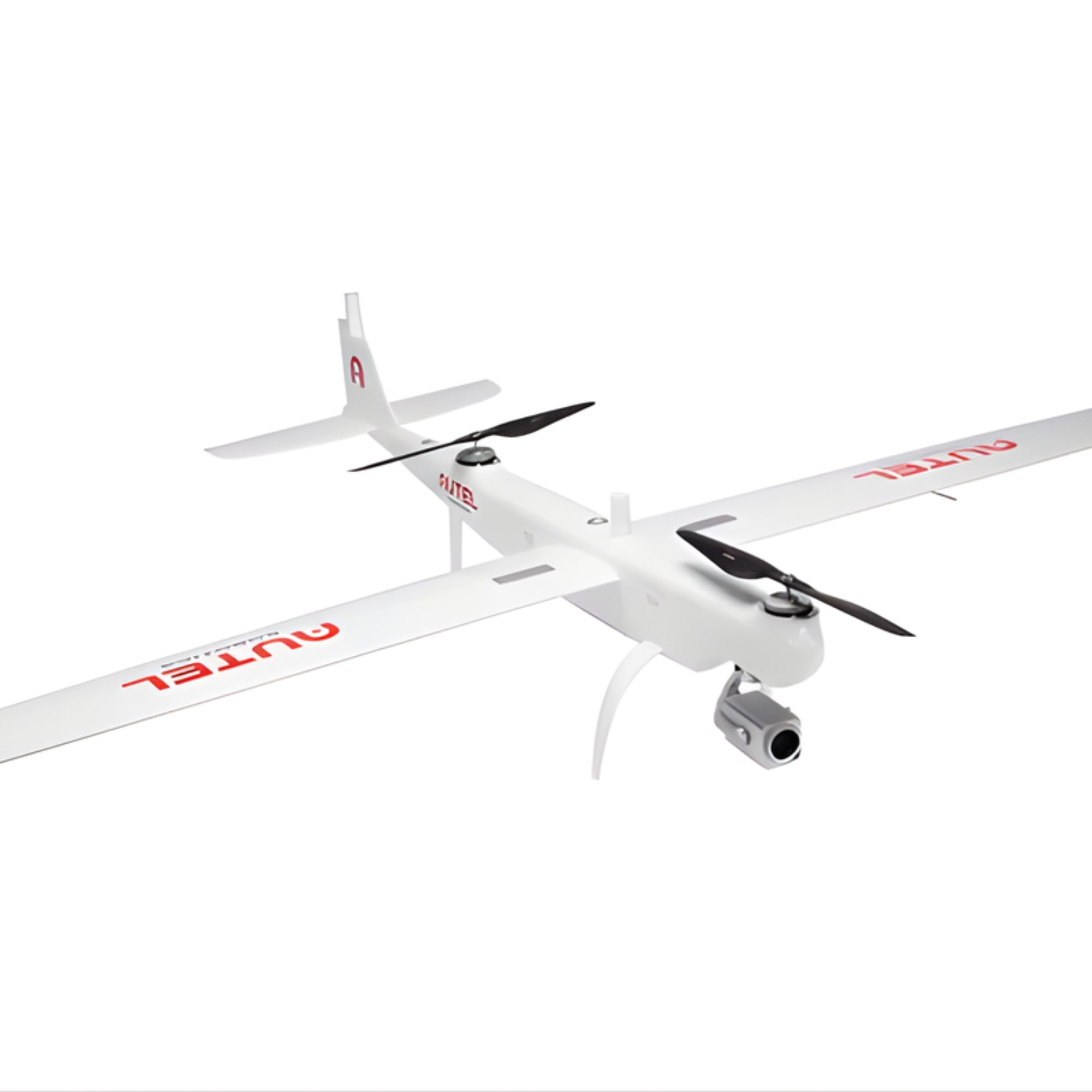

Autel Dragonfish Standard with L20T Payload Camera

The Autel Dragonfish Standard with L20T Payload Camera is a high-performance unmanned aerial vehicle (UAV) designed for demanding industrial, commercial, and surveying applications. Built by Autel Robotics, the Dragonfish platform provides reliable long-endurance flight combined with advanced imaging technology. Equipped with the L20T multi-sensor payload camera, the system delivers both high-resolution visible imagery and powerful thermal imaging capabilities. This combination allows operators to perform complex aerial tasks such as mapping, infrastructure inspections, emergency response missions, and environmental monitoring. With an impressive 120-minute flight time, the Dragonfish Standard offers extended mission capability, reducing the need for frequent landings and battery changes. The system integrates seamlessly with the Dragonfish platform, ensuring smooth operation, efficient data capture, and dependable performance in professional environments.

Specifications

1. Manufacturer: Autel Robotics
2. Drone Model Compatibility: Autel Dragonfish Standard
3. Payload Camera: L20T Multi-Sensor Camera
4. Flight Time: Up to 120 minutes
5. Camera Type: Multi-sensor (visible spectrum + thermal imaging)
6. Open Box: No (Brand New)
7. Application Type: Industrial, Surveying, Commercial UAV Operations
8. Integration: Fully compatible with the Dragonfish Standard system

Features

1. Advanced L20T Multi-Sensor Payload
   Combines high-resolution visual camera with thermal imaging for enhanced aerial analysis.
2. Long Endurance Flight
   Up to 120 minutes of flight time, ideal for long missions and large-area coverage.
3. Thermal + Visible Imaging
   Allows operators to detect heat signatures while maintaining detailed visual imagery.
4. Professional Industrial Use
   Built for demanding environments such as infrastructure inspections and emergency operations.
5. Seamless Dragonfish Integration
   Designed to work perfectly with the Autel Dragonfish Standard platform for stable and efficient missions.

Maintenance

To ensure optimal performance and longevity of the Autel Dragonfish Standard with L20T Payload Camera, regular maintenance is recommended.

1. Routine Inspection:
   Check propellers, payload mount, and airframe components before and after each flight.
2. Camera Care:
   Clean the L20T camera lenses with a microfiber cloth and keep the sensors free from dust or debris.
3. Battery Management:
   Store batteries in a cool, dry place and follow manufacturer charging guidelines to maintain battery health.
4. Firmware Updates:
   Regularly update the drone and payload firmware to ensure system stability and access the latest features.
5. Safe Storage:
   Keep the UAV and camera equipment in protective cases when not in use to prevent damage during transport.

Autel Dragonfish Standard FAQ

What is the maximum payload capacity of the Dragonfish?

1. Dragonfish Standard: Maximum payload weight is 1.5 kg.
2. Dragonfish Pro: Maximum payload weight is 2.2 kg.

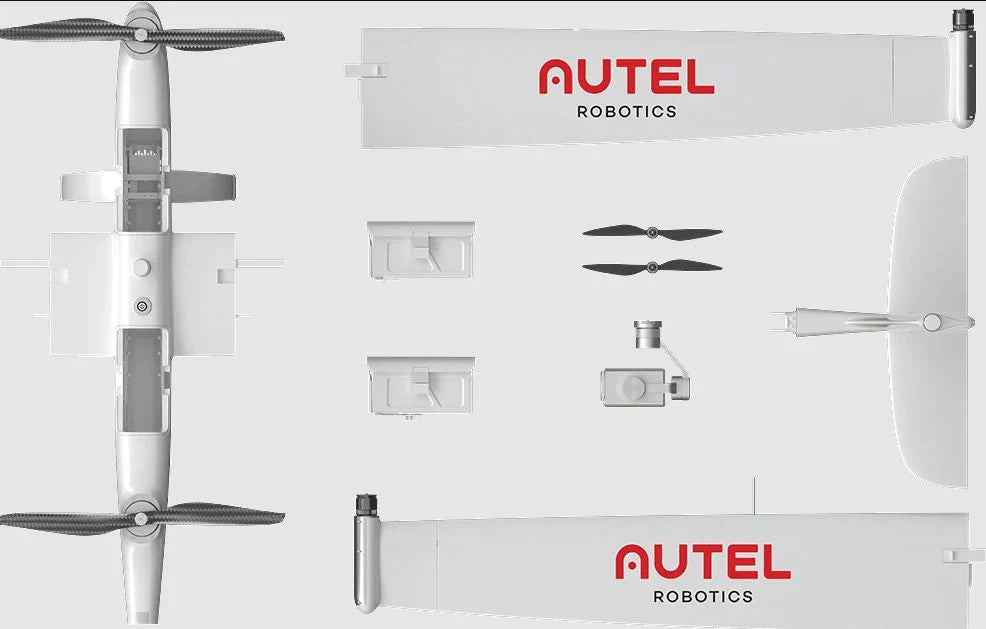

Are the blades removable?

The blades on both sides of the wings are quick-release and can be easily removed and stored. The blades at the front and rear generally do not need to be removed. If replacement is required, a tool set is needed.

What is the ingress protection (IP) rating? Can it fly in rain?

The Dragonfish has an IP43 rating and can operate in light to moderate rain.

What is the maximum flight time?

1. Dragonfish Standard: Up to 107 minutes.
2. Dragonfish Pro: Up to 179 minutes.

What is the effective image transmission range?

1. With base station: Up to 30 km
2. Ground station only: Up to 15 km

What is the resolution of the Dragonfish gimbal camera?

Dual-Lens Camera

1. 4K UHD optical zoom camera with 20× optical zoom and 12× digital zoom
2. 48 MP high-resolution wide-angle camera

Triple-Sensor Camera

1. 4K UHD optical zoom camera with 20× optical zoom and 12× digital zoom
2. 48 MP wide-angle camera
3. 640 × 512 infrared thermal camera with up to 2000 m detection range

Can the gimbal mount be replaced?

Yes. The gimbal mount is replaceable. Currently, Dragonfish supports dual-lens and triple-sensor cameras, with additional mounts potentially available in the future.

If the batteries have different charge levels, can the aircraft take off?

1. If the difference is less than 12%, takeoff is allowed.
2. If the difference is greater than 12%, the app will display “Battery power difference is too large” and takeoff will not be permitted.

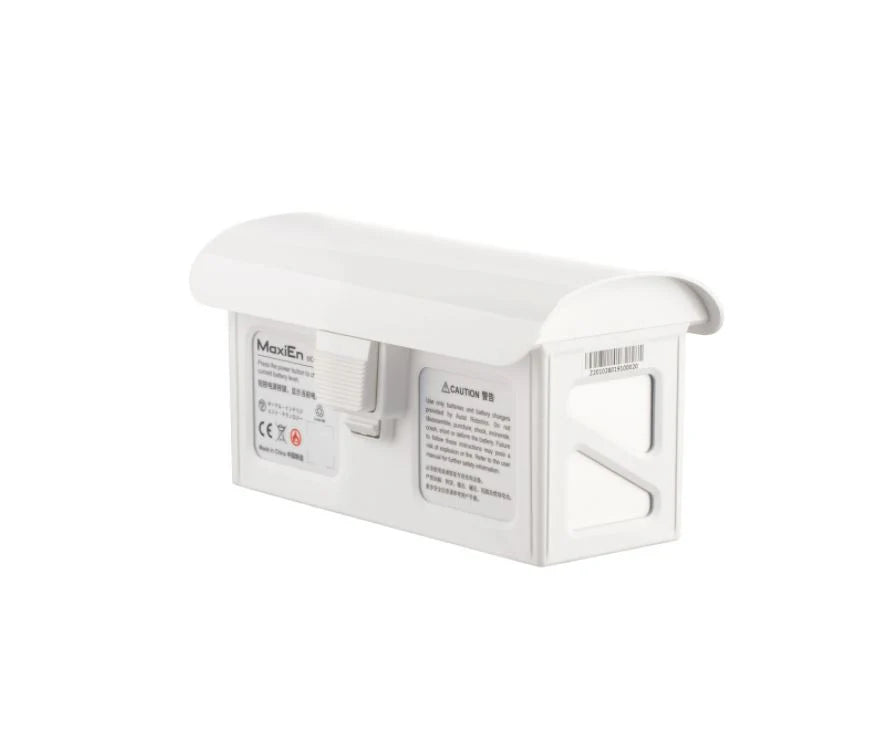

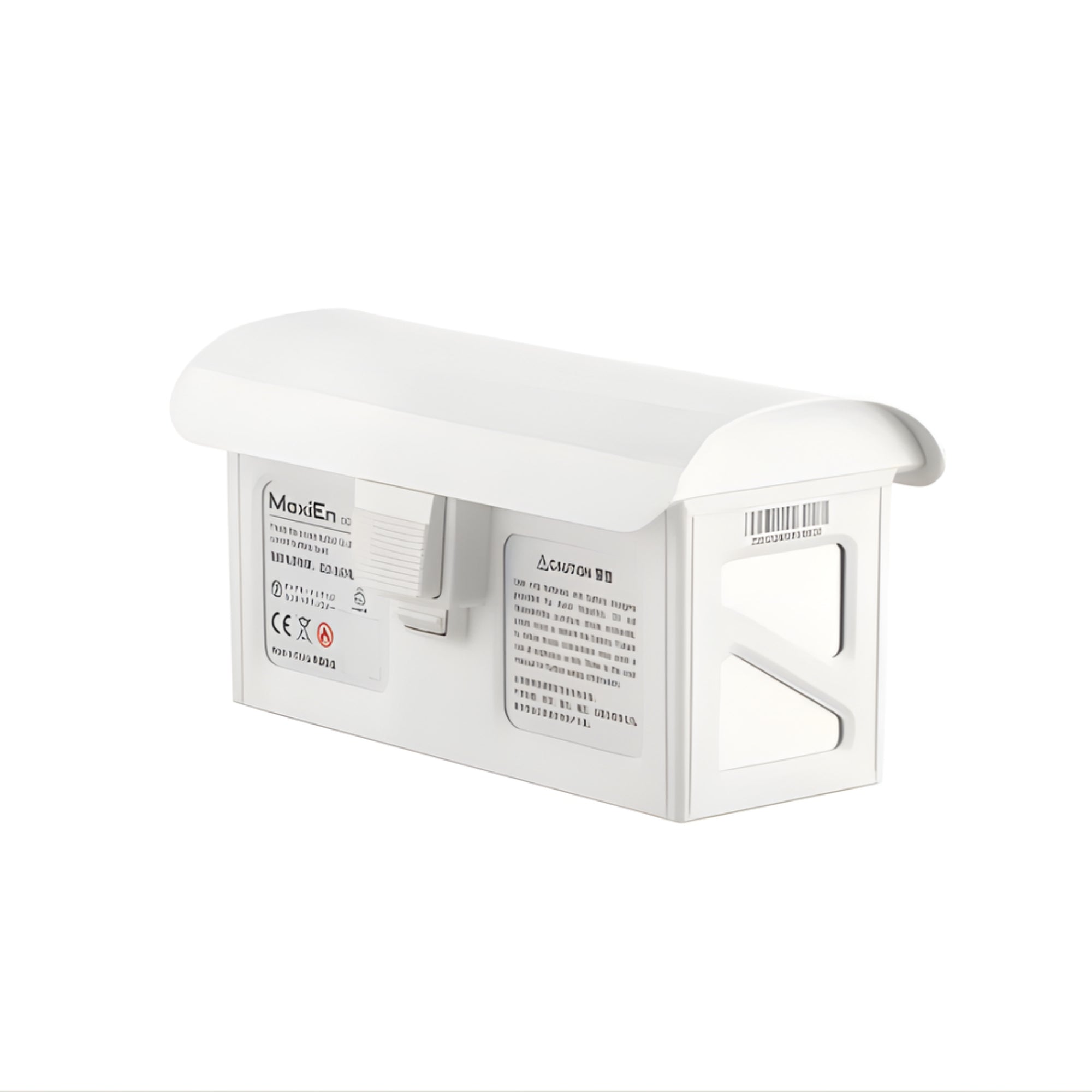

Can the battery be carried on an airplane?

The battery has a 277.2 Wh rating, which cannot be carried on board aircraft according to airline regulations.

Can the battery operate in low temperatures?

Operating temperature range: -20°C to 40°C.
Low temperatures reduce performance, so plan flight time accordingly.
For best performance, keep battery temperature above 15°C before flight.

If charging between -20°C and 5°C, the battery automatically activates its self-heating function before charging.

How should the battery be maintained?

1. Charge and discharge both batteries together.
2. Allow batteries to cool to room temperature before charging.
3. Ideal charging temperature: 15°C – 40°C.
4. Ideal storage temperature: 22°C – 28°C, dry environment.
5. If unused for 10+ days, discharge to 20–30% before storage. Recharge every 3 months.

How long does it take to charge the batteries?

1. Single battery: ~120 minutes
2. Two batteries: ~240 minutes

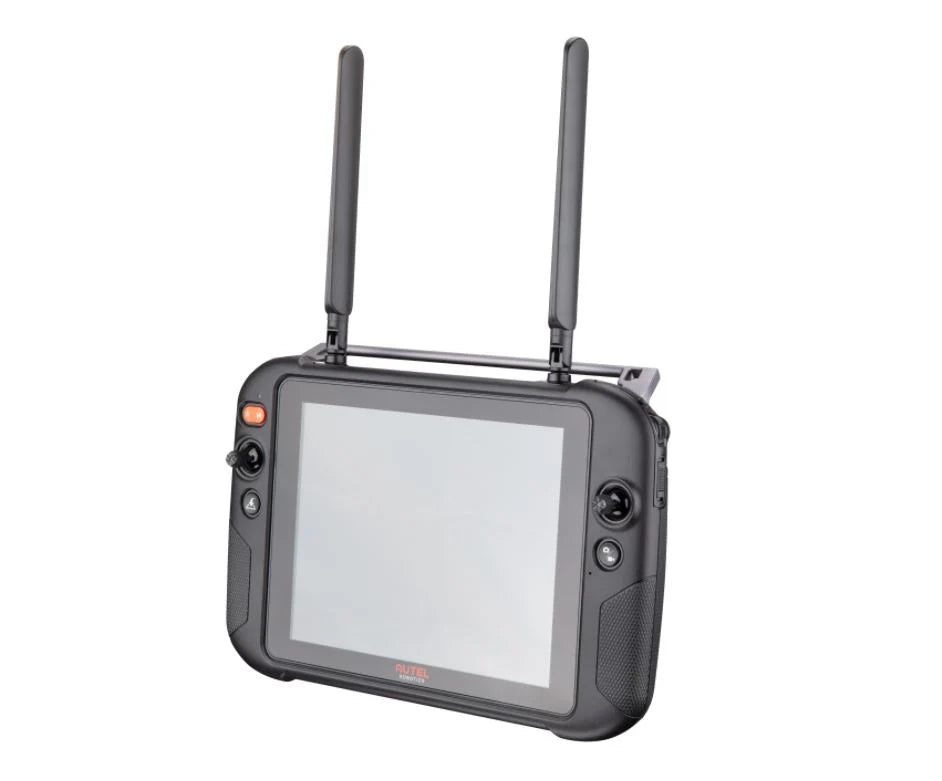

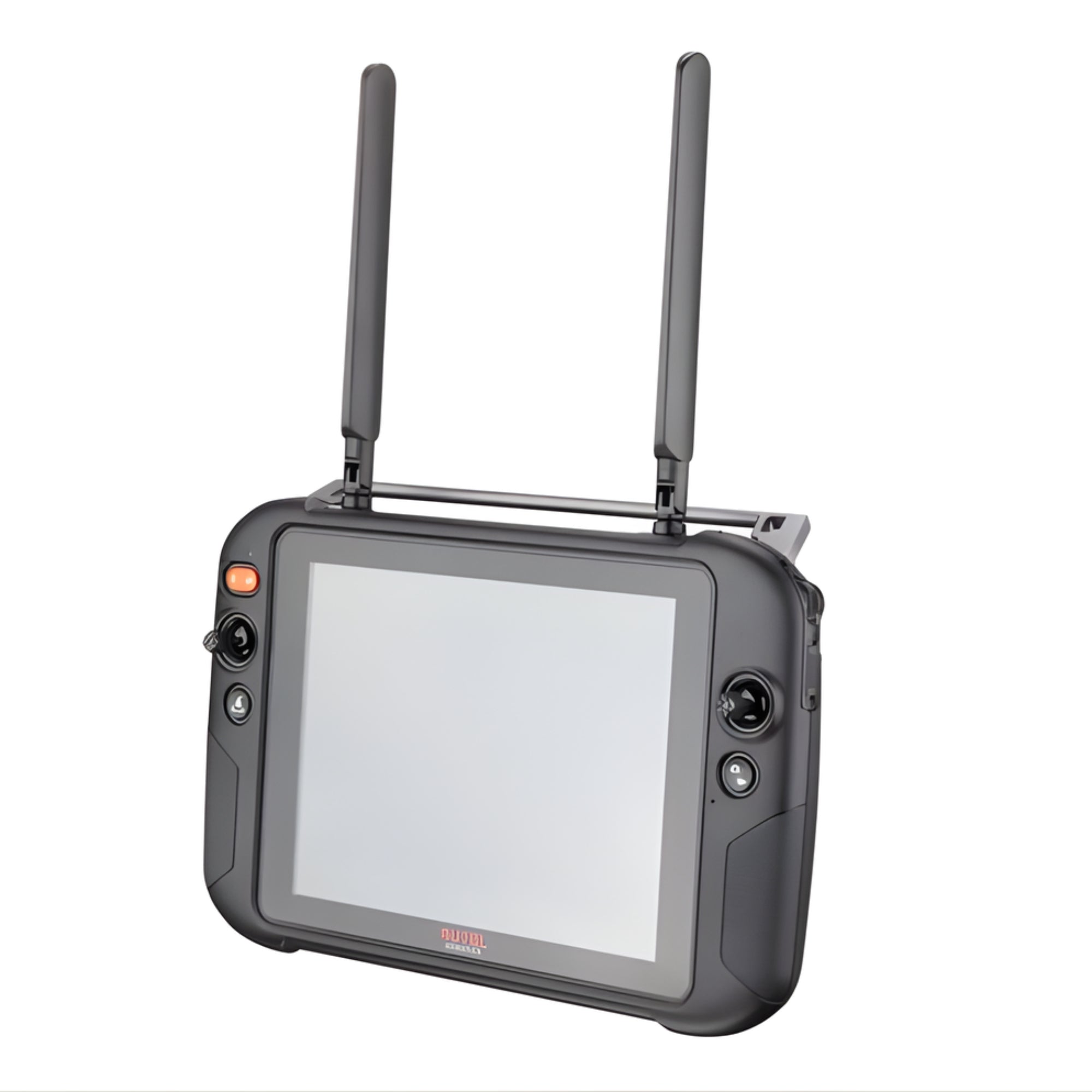

Does the ground station have internal storage?

Yes. It includes 256 GB internal storage.

What is the operating temperature of the ground station?

-20°C to 40°C

What is the battery life of the ground station?

1. 3 hours at maximum brightness
2. 4.5 hours at 50% brightness

How long does it take to charge the ground station?

Approximately 120 minutes.

What are the screen specifications?

1. 9.7-inch touchscreen
2. 2048 × 1536 resolution
3. 1000 nits brightness

What video output interface is available?

The ground station provides an HDMI output interface.

Can the Dragonfish ground station be used with other products?

No. It is designed specifically for Dragonfish systems.

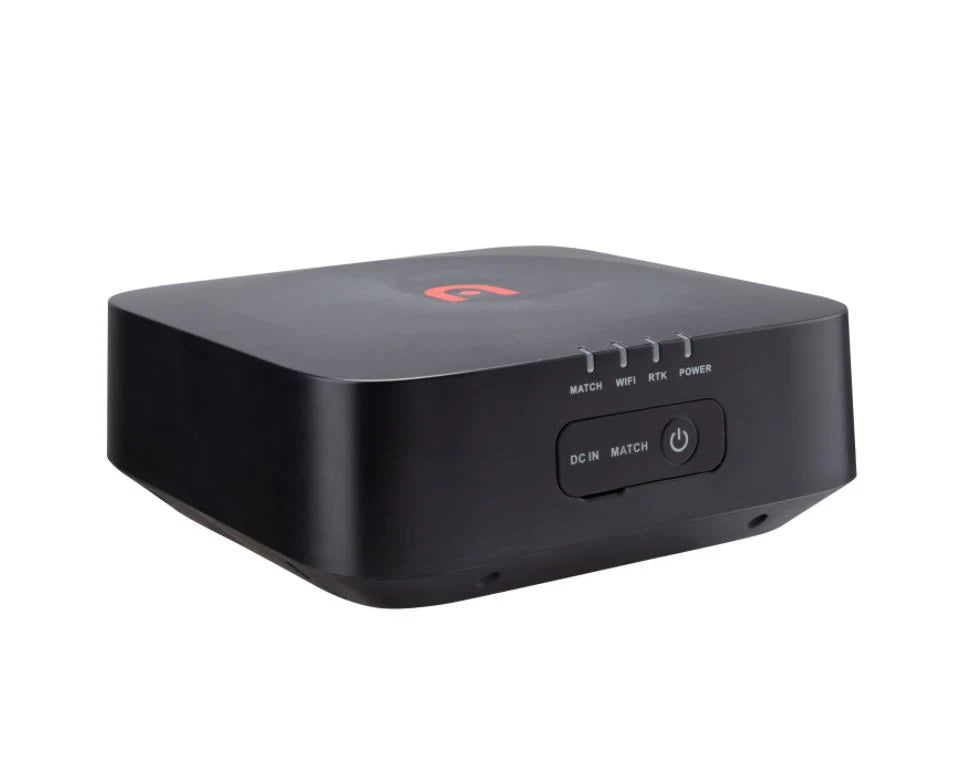

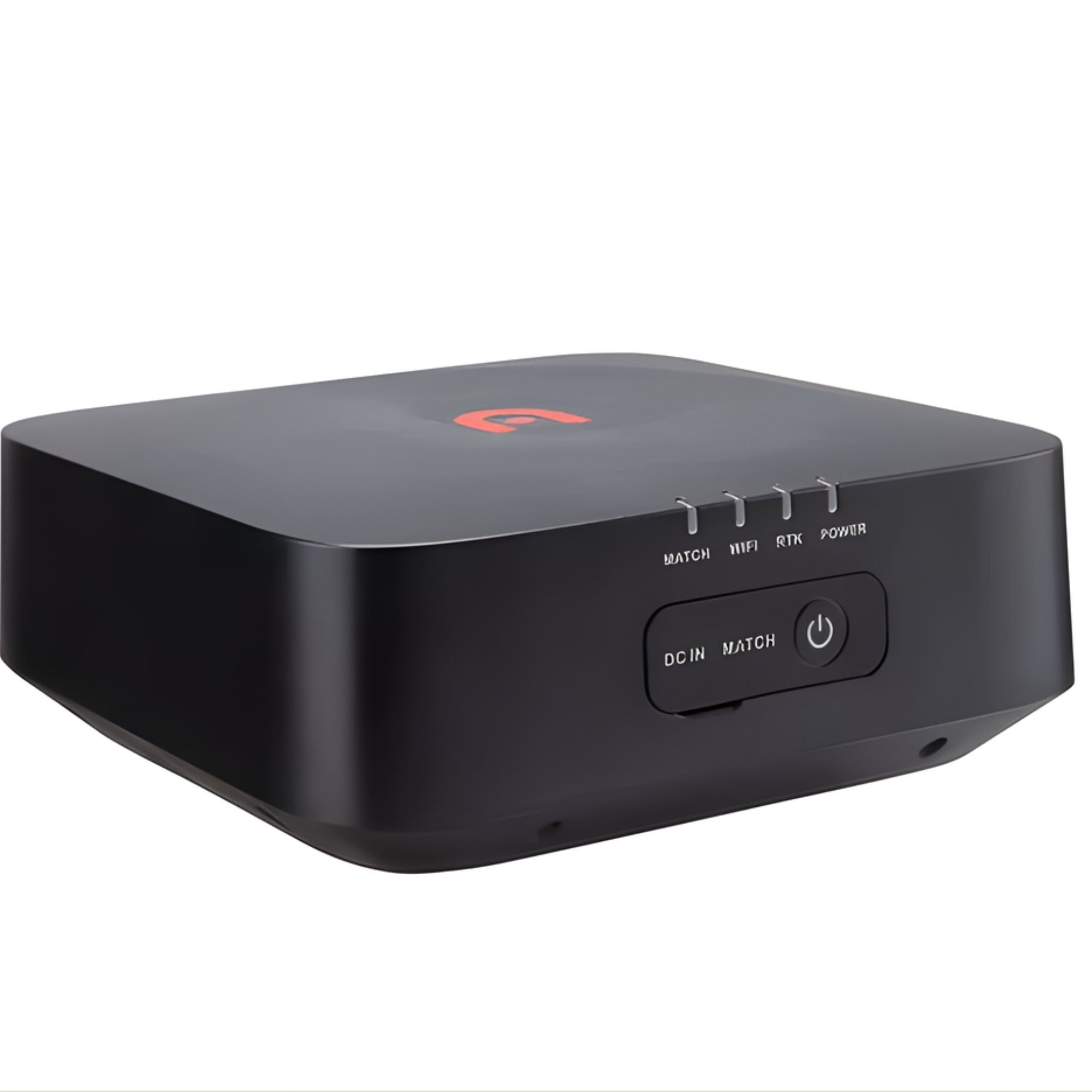

What is the operating duration of the base station?

More than 7.5 hours on a full charge.

How long does it take to charge the base station?

Approximately 120 minutes.

What is the positioning accuracy of the base station?

Single Point Mode

1. Horizontal: 1.5 m (RMS)
2. Vertical: 3.0 m (RMS)

RTK Mode

1. Horizontal: 1 cm + 1 ppm (RMS)
2. Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems are supported?

Supports multiple GNSS systems simultaneously:

1. GPS: L1, L2, L5
2. BeiDou: B1, B2, B3
3. GLONASS: F1, F2
4. Galileo: E1, E5A, E5B

Which software application is supported?

Currently supports the Autel Voyager App.

How do you upgrade the firmware?

Method 1 – USB Upgrade

1. Power on aircraft, ground station, and base station.
2. Download firmware from Autel official website.
3. Copy firmware to a USB drive.
4. Insert the USB drive into the ground station and follow the on-screen instructions.

Method 2 – Online Upgrade

1. Power on and connect all devices.
2. Connect the ground station to the internet.
3. The system will automatically detect available updates.
4. Download and select Upgrade.
5. Wait for “Firmware Upgrade Complete”.

What industries can Dragonfish be used in?

Dragonfish is suitable for many professional applications, including:

1. Law enforcement
2. Forest fire monitoring
3. Power line inspection
4. Traffic monitoring
5. Coastal security and anti-smuggling
6. Agricultural monitoring
7. Infrastructure inspection and more
